VBsemi ElecDatasheet (PDF)

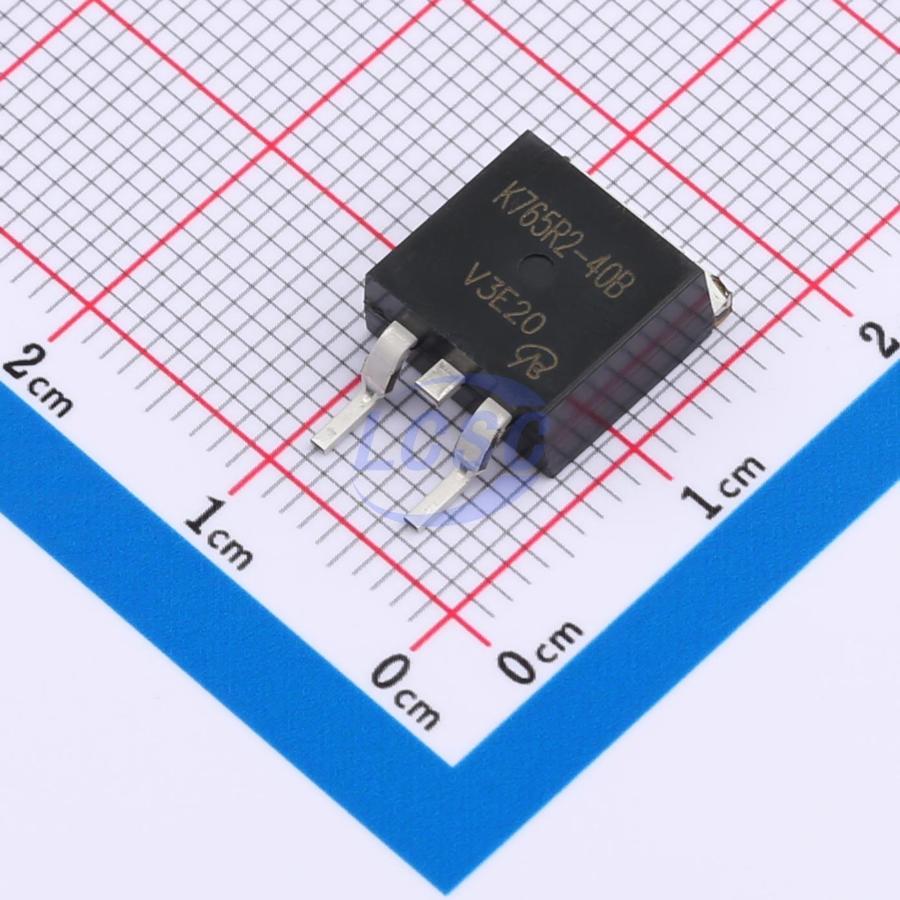

BUK765R2-40B-VB
N-Channel 40V 100A 150W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 40V 100A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK765R2-40B-VB
- Store part #
- C7494602
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C7494602
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.59 | ₹110.59 |
| 10+ | ₹91.62 | ₹916.20 |
| 50+ | ₹71.87 | ₹3,593.50 |
| 100+ | ₹62.49 | ₹6,249.00 |
| 500+ | ₹56.89 | ₹28,445.00 |
| 1,000+ | ₹53.90 | ₹53,900.00 |
1 × ₹110.59
₹110.59
excl. GST
₹130.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
BUK765R2-40B-VB
₹110.59 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.395nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.33nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 5mΩ@10V;6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 53.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.222 g
Overview
Applications
- OR-ing - Server - DC/DC
Key features
- Thunder Power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS tested
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRL1004SPBF-VB#C19626842VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹125.82 · 5 in stock | View |
 | SUM70N04-07L-E3-VB#C19632250VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹107.14 · 20 in stock | View |
 | STB100NF04-VB#C725202VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 15 | ₹100.60 · 15 in stock | View |
 | FDB8447L-VB#C22389170VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 29 | ₹125.62 · 29 in stock | View |
 | AUIRF4104S-VB#C22389264VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹102.93 · 3 in stock | View |
