VBsemi ElecDatasheet (PDF)

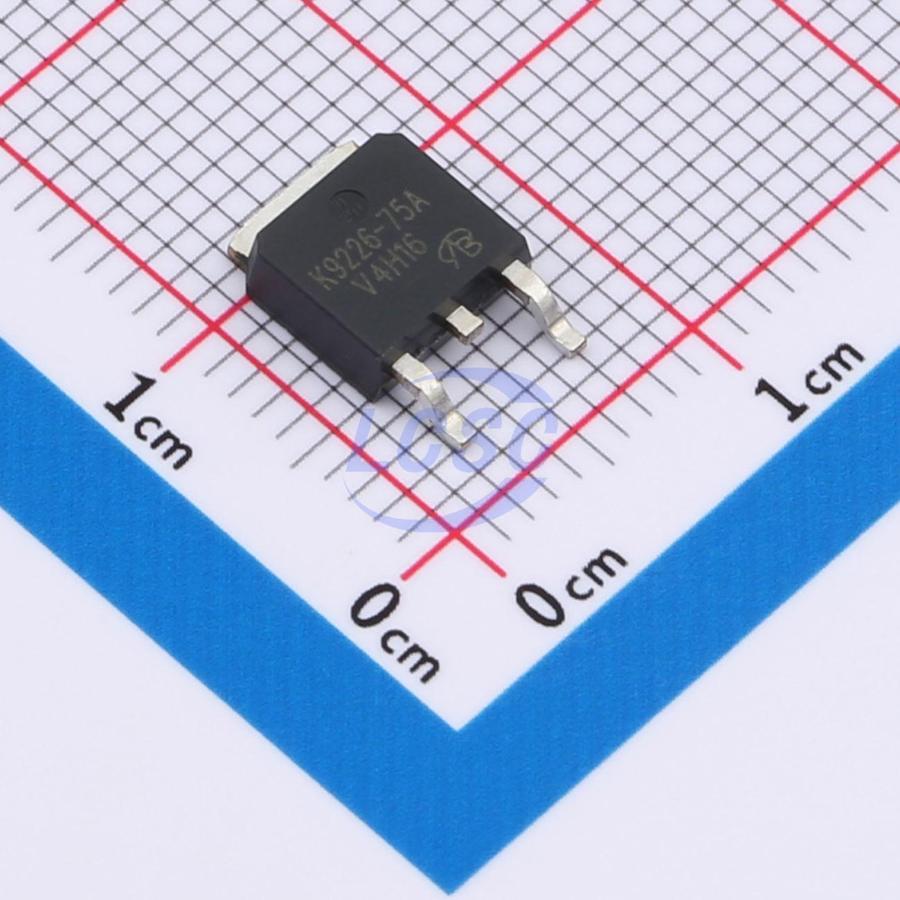

BUK9226-75A-VB
N-Channel 100V 45A 136.4W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK9226-75A-VB
- Store part #
- C29779807
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C29779807
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.42 | ₹133.42 |
| 10+ | ₹108.66 | ₹1,086.60 |
| 30+ | ₹96.27 | ₹2,888.10 |
| 100+ | ₹83.88 | ₹8,388.00 |
| 500+ | ₹70.62 | ₹35,310.00 |
| 1,000+ | ₹66.93 | ₹66,930.00 |
1 × ₹133.42
₹133.42
excl. GST
₹157.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BUK9226-75A-VB
₹133.42 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 230pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 2.4nF
- Pd - Power Dissipation
- 136.4W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 18.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.495 g
Overview
Applications
- Primary-side switch
- Isolated DC/DC converter
Key features
- Trench power MOSFET
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
