TECH PUBLICDatasheet (PDF)

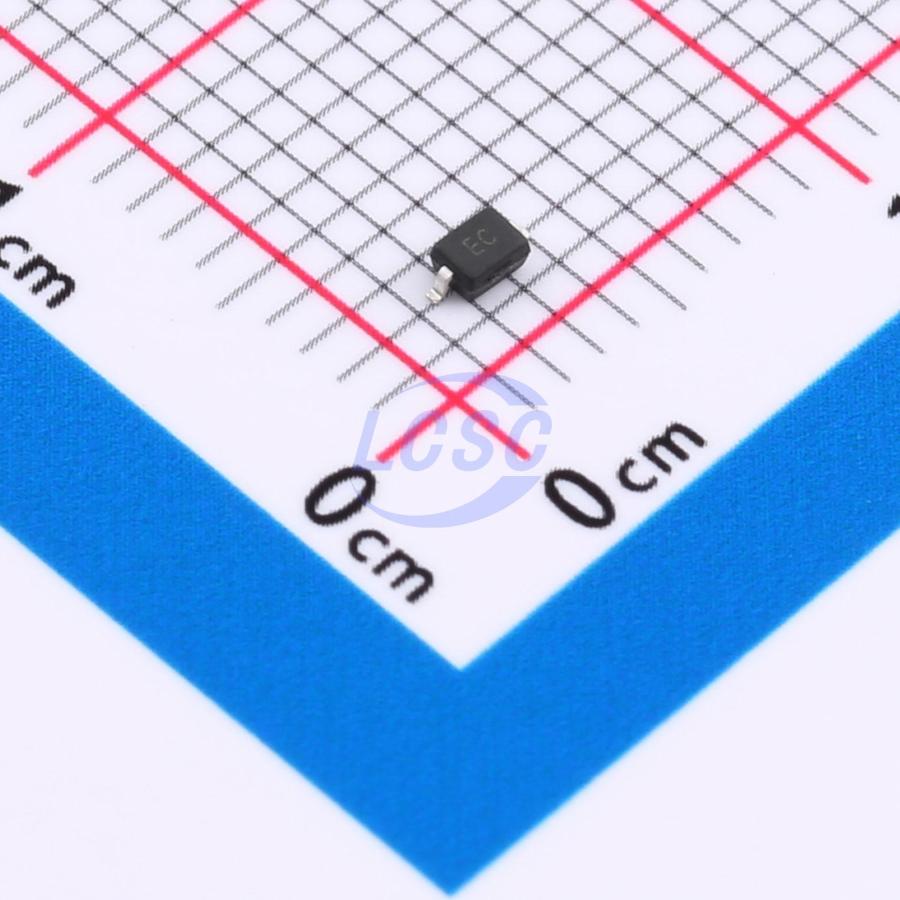

BV15C-L
22VC 33VC Clamp TVS DIODE SOD-323
SOD-323RoHSActive
TVS DIODE 15VWM 22VC 33VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- BV15C-L
- Store part #
- C19829452
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,990 in stock
#C19829452
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.47 | ₹64.70 |
| 100+ | ₹5.07 | ₹507.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 3,000+ | ₹3.84 | ₹11,520.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.20 | ₹28,800.00 |
10 × ₹6.47
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BV15C-L
₹64.70 for 10 + GST
Specifications
- Clamping Voltage
- 33V
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Voltage - Breakdown
- 16V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- 200W peak pulse power (8/20μs)
- Low operating :15V
- Ultra low capacitance: 0.8 pF typical
- Ultra low leakage: nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20 kV Contact discharge: ±18 kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
