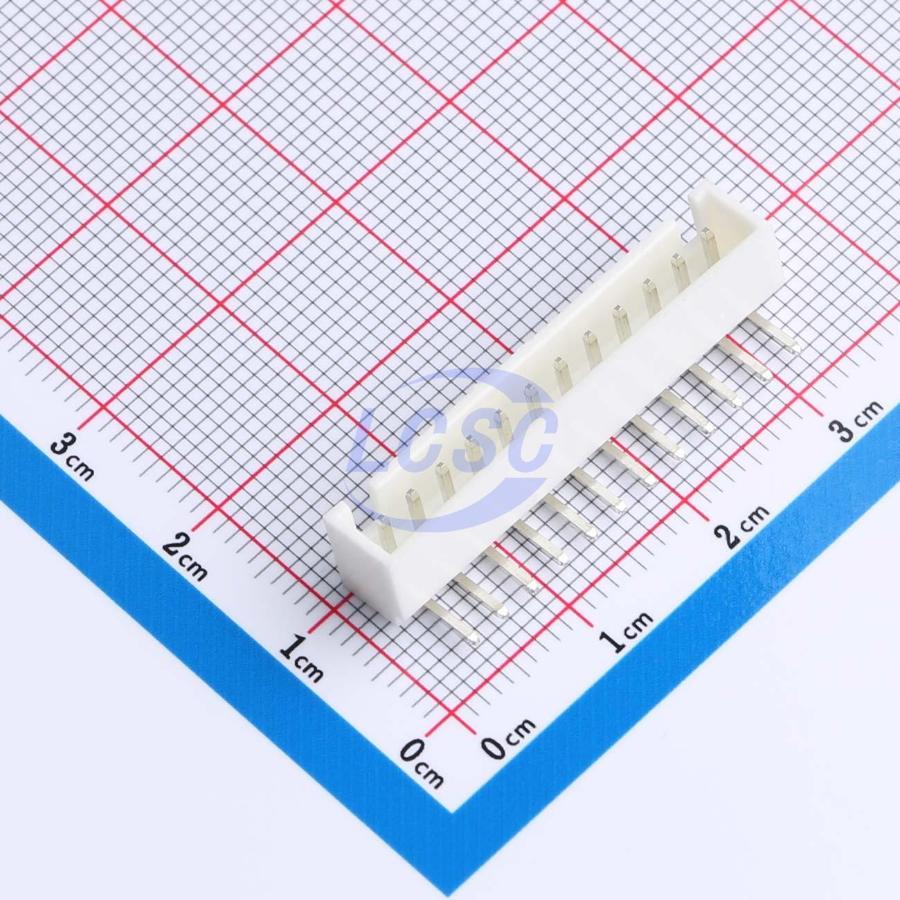

BX-HA2.54-12PWZ Bossie
Bossie

BX-HA2.54-12PWZ

Connector Header 12 position 2.5mm Pitch 3A Right Angle -25℃~+85℃

Through Hole,Right Angle,P=2.5mmROHS CompliantActive

CONN HEADER TH R/A 12POS 2.5mm

Manufacturer
Bossie
Manufacturer part #
BX-HA2.54-12PWZ
Store part #
C22367990
Package / case
Through Hole,Right Angle,P=2.5mm
Category
Headers, Male Pins
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

350 in stock

#C22367990

Stock & price checked 8 days ago

QuantityUnit pricePack price
5+₹14.84₹74.20
50+₹12.53₹626.50
150+₹11.36₹1,704.00
500+₹10.50₹5,250.00
2,500+₹9.80₹24,500.00
5,000+₹9.46₹47,300.00

5 × ₹14.84

₹74.20

excl. GST

₹87.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 500 per bag

BX-HA2.54-12PWZ

₹74.20 for 5 + GST

Specifications

Connector Type
Right Angle
Reference Series
XHB
Voltage Rating (Max)
250V
Contact Material
Brass
Number of PINs Per Row
12
Number of Rows
1
Pitch
2.5mm
Flame Retardant Rating
UL94V-0
Current Rating
3A
Number of PINs
12P
Operating Temperature
-25℃~+85℃
Contact Plating
Tin
Plastic Material
PA66
Color
White
X-Length of Bottom Edge on Board (Spacing Line)
32.5mm
Pin Structure
1x12P

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
500 / Bag
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
1.17 g
