VISHAYDatasheet (PDF)

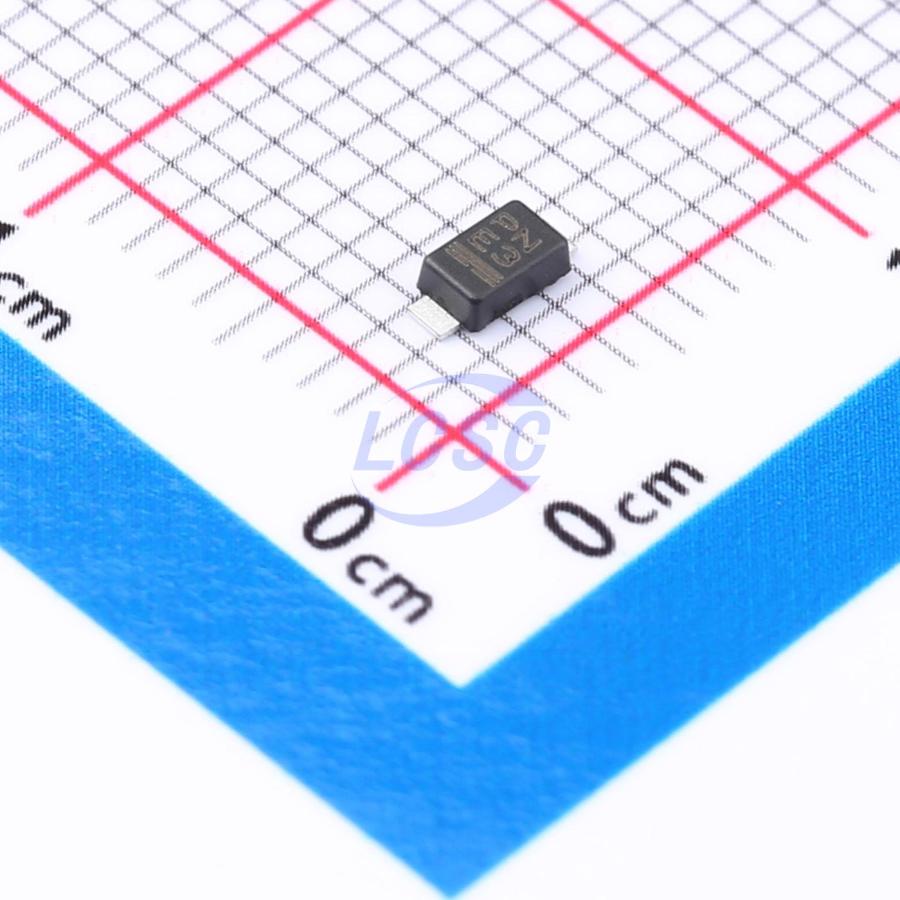

BZD27C12P-E3-08
Zener Diode Independent 12V 2300mW Surface Mount DO-219AB
DO-219ABROHS3 CompliantActive
DIODE ZENER 12V 2300mW DO-219AB
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C12P-E3-08
- Store part #
- C5342942
- Package / case
- DO-219AB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
270 in stock
#C5342942
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.76 | ₹103.80 |
| 50+ | ₹16.30 | ₹815.00 |
| 150+ | ₹14.38 | ₹2,157.00 |
| 500+ | ₹12.00 | ₹6,000.00 |
| 3,000+ | ₹10.93 | ₹32,790.00 |
| 6,000+ | ₹10.29 | ₹61,740.00 |
5 × ₹20.76
₹103.80
excl. GST
₹122.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C12P-E3-08
₹103.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 2.3W
- Reverse Leakage Current (Ir)
- 5uA@10V
- Impedance(Zzt)
- 7Ω
- Zener Voltage(Range)
- 11.4V~12.7V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- RoHS-compliant, and commercial grade
- RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZD27C12P-HE3-08#C144949VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 1,565 | ₹37.15 · 1,565 in stock | View |
 | BZD27B12P-M3-08#C6870593VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 13 | ₹86.63 · 13 in stock | View |
 | BZD27C11P-E3-08#C3765184VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 80 | ₹29.58 · 80 in stock | View |
| BZD27C12P-HE3-18#C6474883VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹40.33 · 0 in stock | View | |
| BZD27C12P-E3-18#C7223550VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
