VISHAYDatasheet (PDF)

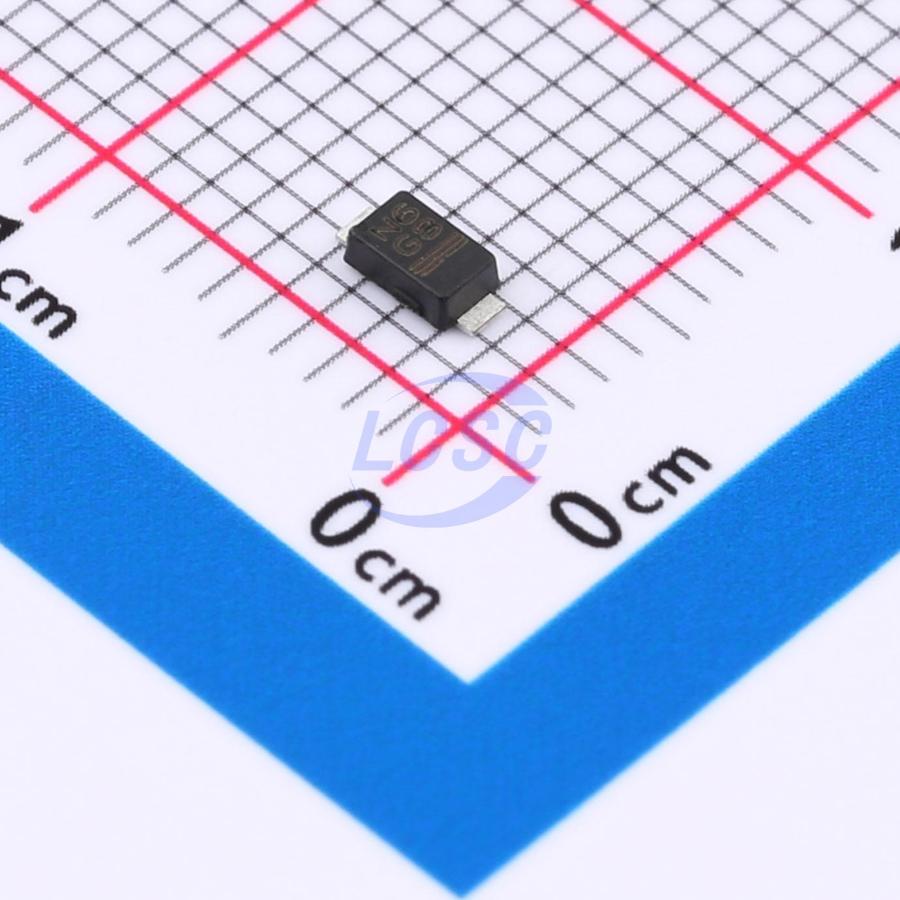

BZD27C130P-E3-08
Zener Diode Independent 130V 2.3W Surface Mount SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
DIODE ZENER 130V 2.3W SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C130P-E3-08
- Store part #
- C6137107
- Package / case
- SMF(DO-219AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
290 in stock
#C6137107
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.63 | ₹60.63 |
| 10+ | ₹48.25 | ₹482.50 |
| 30+ | ₹42.81 | ₹1,284.30 |
| 100+ | ₹36.29 | ₹3,629.00 |
| 500+ | ₹33.25 | ₹16,625.00 |
| 1,000+ | ₹31.51 | ₹31,510.00 |
1 × ₹60.63
₹60.63
excl. GST
₹71.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C130P-E3-08
₹60.63 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 2.3W
- Reverse Leakage Current (Ir)
- 5uA@100V
- Impedance(Zzt)
- 300Ω
- Zener Voltage(Range)
- 124V~141V
- Zener Voltage(Nom)
- 130V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3 - RoHS-compliant, and commercial grade
- Base P/N-HE3 - RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZD27C130P-HE3-08#C6474885VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹44.04 · 0 in stock | View | |
| BZD27C130P-E3-18#C6755770VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹22.74 · 0 in stock | View | |
| BZD27C130P-M3-18#C6755772VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹24.77 · 0 in stock | View | |
| BZD27C130P-HE3-18#C7092972VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹44.04 · 0 in stock | View | |
| BZD27C130P-M3-08#C5583496VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹21.67 · 0 in stock | View | |
