VISHAYDatasheet (PDF)

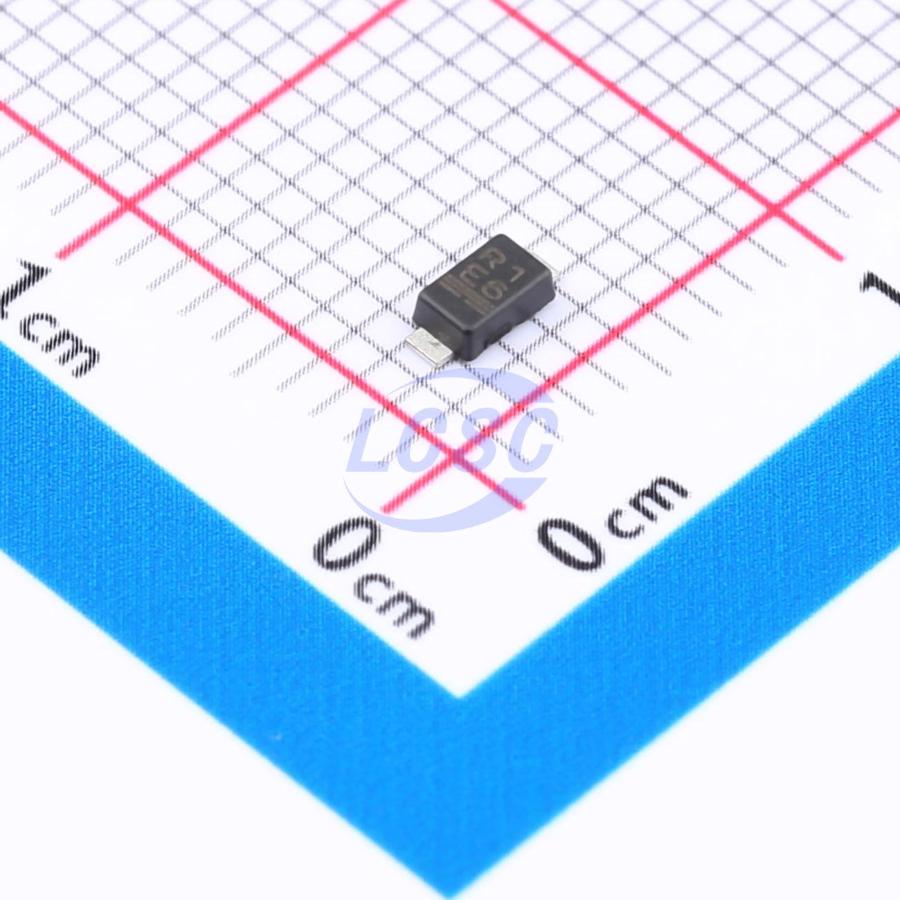

BZD27C16P-E3-08
Zener Diode Independent 16V 800mW Surface Mount DO-219AB
DO-219ABROHS3 CompliantActive
DIODE ZENER 16V 800mW DO-219AB
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C16P-E3-08
- Store part #
- C5358665
- Package / case
- DO-219AB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
910 in stock
#C5358665
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.04 | ₹120.20 |
| 50+ | ₹19.13 | ₹956.50 |
| 150+ | ₹17.03 | ₹2,554.50 |
| 500+ | ₹14.41 | ₹7,205.00 |
| 3,000+ | ₹13.23 | ₹39,690.00 |
| 6,000+ | ₹12.53 | ₹75,180.00 |
5 × ₹24.04
₹120.20
excl. GST
₹141.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C16P-E3-08
₹120.20 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 800mW
- Reverse Leakage Current (Ir)
- 1uA@12V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 15.3V~17.1V
- Zener Voltage(Nom)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Key features
- Silicon planar Zener diode
- Low-profile SMD package
- Zener and surge current specifications
- Low leakage current
- Excellent stability
- MSL level 1 per J-STD-020, LF max peak 260℃
- Whisker test category 2 per JESD 201
- ESD capability per AEC-Q101: Human Body Model: >8kV, Machine Model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified
- RoHS compliant, commercial grade
- RoHS compliant and AEC-Q101 qualified
- Compatible with SOD-123W package outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZD27C16P-M3-18#C6132714VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹21.67 · 0 in stock | View | |
| BZD27C16P-HE3-18#C6137111VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹40.33 · 0 in stock | View | |
| BZD27C16P-E3-18#C6870641VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹22.74 · 0 in stock | View | |
| BZD27C16P-M3-08#C3732132VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹24.09 · 0 in stock | View | |
| BZD27B16P-M3-08#C6132681VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹24.83 · 0 in stock | View | |
