VISHAYDatasheet (PDF)

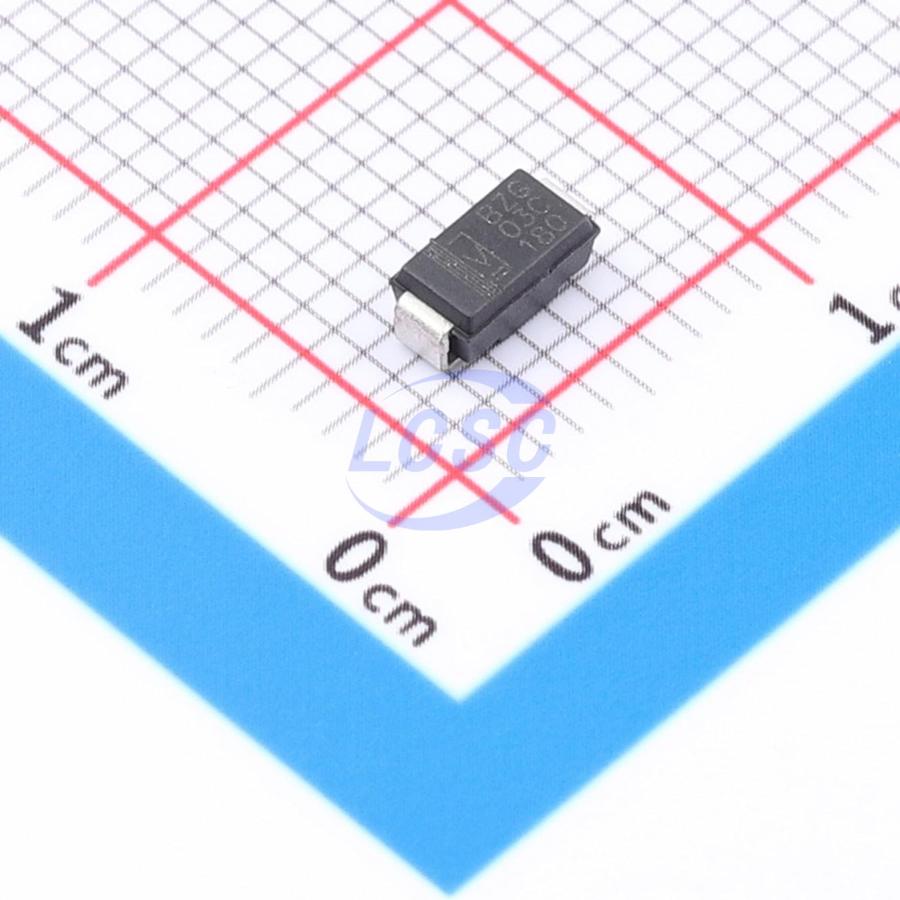

BZG03C180-HM3-08
1 Independent 168V~191V 180V SMA(DO-214AC) Single Zener Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG03C180-HM3-08
- Store part #
- C3738004
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
505 in stock
#C3738004
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.95 | ₹79.95 |
| 10+ | ₹65.29 | ₹652.90 |
| 30+ | ₹57.96 | ₹1,738.80 |
| 100+ | ₹50.64 | ₹5,064.00 |
| 500+ | ₹46.12 | ₹23,060.00 |
| 1,500+ | ₹43.96 | ₹65,940.00 |
1 × ₹79.95
₹79.95
excl. GST
₹94.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG03C180-HM3-08
₹79.95 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@130V
- Impedance(Zzt)
- 180Ω
- Zener Voltage(Range)
- 168V~191V
- Zener Voltage(Nom)
- 180V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.096 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 10 V to 270 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
- Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZG03C180#C362303LGE · DO-214AC(SMA) | LGE | DO-214AC(SMA) | 10,860 | ₹13.96 · 10,860 in stock | View |
 | 1SMA4770A#C37635985YFW · SMA | YFW | SMA | 660 | ₹4.82 · 660 in stock | View |
| 1SMA4770A#C54525275MDD(Microdiode Semiconductor) · SMA | MDD(Microdiode Semiconductor) | SMA | 1,980 | ₹5.17 · 1,980 in stock | View | |
 | 1SMA4770A#C5455789XCH · SMA | XCH | SMA | 2,170 | ₹7.95 · 2,170 in stock | View |
 | 1SMA5955B#C53403621YFW · SMA | YFW | SMA | 4,885 | ₹12.25 · 4,885 in stock | View |
