VISHAYDatasheet (PDF)

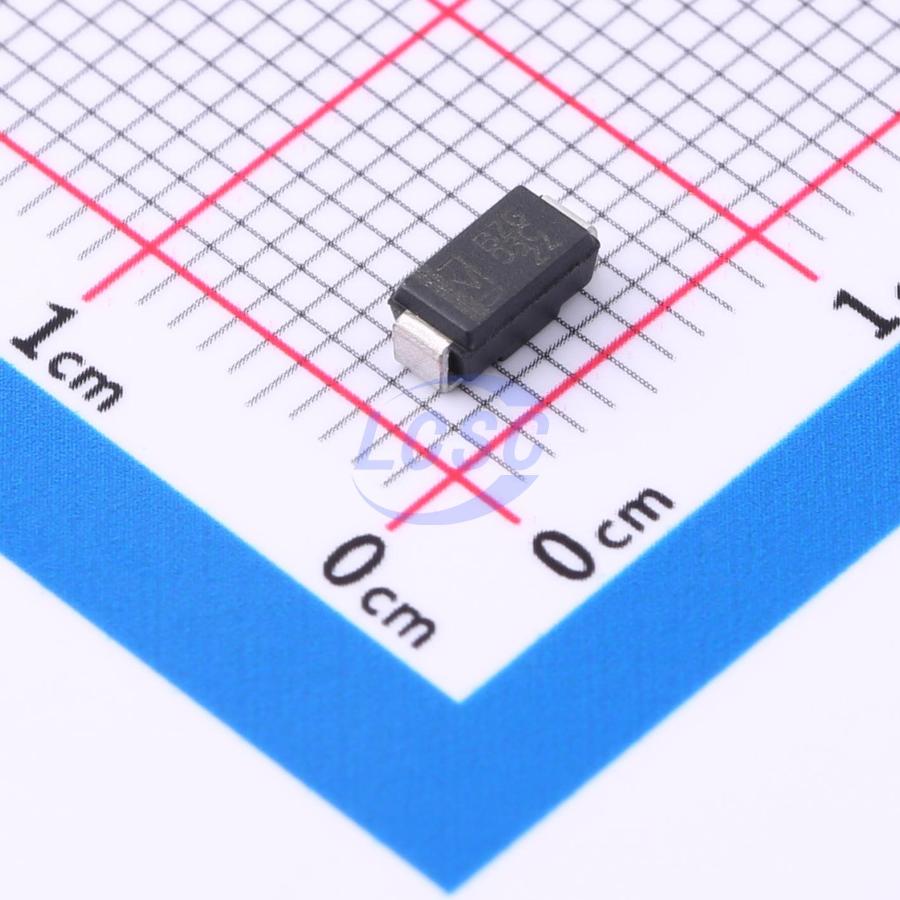

BZG03C24-M3-08
Zener Diode Independent 24V 3W Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE ZENER 24V 3W SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG03C24-M3-08
- Store part #
- C3765268
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
710 in stock
#C3765268
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.39 | ₹246.95 |
| 50+ | ₹40.84 | ₹2,042.00 |
| 150+ | ₹37.18 | ₹5,577.00 |
| 1,500+ | ₹32.61 | ₹48,915.00 |
| 3,000+ | ₹30.57 | ₹91,710.00 |
| 4,500+ | ₹29.36 | ₹1,32,120.00 |
5 × ₹49.39
₹246.95
excl. GST
₹291.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG03C24-M3-08
₹246.95 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@18V
- Impedance(Zzt)
- 7Ω
- Zener Voltage(Range)
- 22.8V~25.6V
- Zener Voltage(Nom)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 10 V to 270 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
- Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMA3Z24A#C5161120ZHIDE · SMA | ZHIDE | SMA | 705 | ₹13.71 · 705 in stock | View |
| Z1SMA24#C3734930DIOTEC · DO-214AC(SMA) | DIOTEC | DO-214AC(SMA) | 7,025 | ₹12.26 · 7,025 in stock | View | |
 | TP1SMA5934BT3G#C49274871TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,750 | ₹9.42 · 4,750 in stock | View |
 | SMAZ24-TP#C49274897TECH PUBLIC · SMA | TECH PUBLIC | SMA | 8,430 | ₹8.55 · 8,430 in stock | View |
 | 1SMA5934_R1_00001#C696392PANJIT · DO-214AC | PANJIT | DO-214AC | 1,740 | ₹13.02 · 1,740 in stock | View |
