VISHAYDatasheet (PDF)

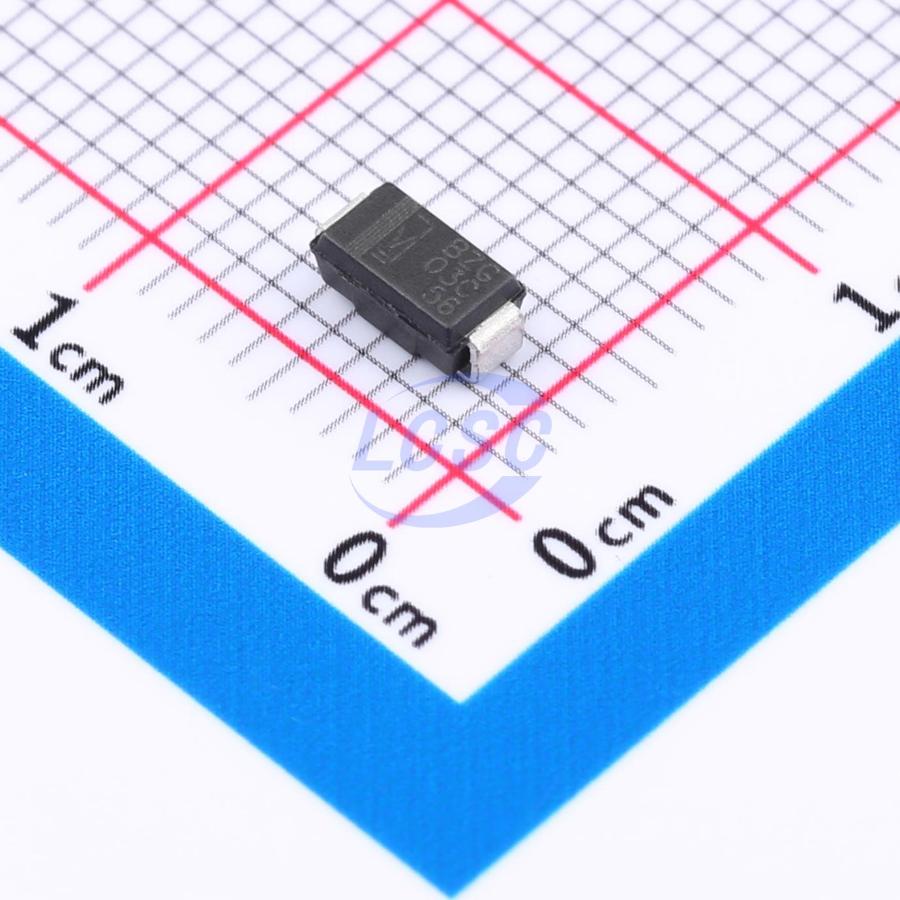

BZG03C56-M3-08
Zener Diode Independent 56V 3W Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE ZENER 56V 3W SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG03C56-M3-08
- Store part #
- C3737562
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
597 in stock
#C3737562
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.89 | ₹86.89 |
| 10+ | ₹84.94 | ₹849.40 |
| 30+ | ₹83.64 | ₹2,509.20 |
| 100+ | ₹82.34 | ₹8,234.00 |
1 × ₹86.89
₹86.89
excl. GST
₹102.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG03C56-M3-08
₹86.89 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@43V
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 52V~60V
- Zener Voltage(Nom)
- 56V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 10 V to 270 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
- Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMA4758A#C22438306PAKER · SMA | PAKER | SMA | 40 | ₹4.41 · 40 in stock | View |
 | 1SMA4758A#C2992835MDD(Microdiode Semiconductor) · SMA | MDD(Microdiode Semiconductor) | SMA | 5,430 | ₹5.70 · 5,430 in stock | View |
 | 1SMA4758A#C438376Jingdao Microelectronics · SMA | Jingdao Microelectronics | SMA | 5,000 | ₹4.63 · 5,000 in stock | View |
 | TP1SMA5943BT3G#C49274803TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,380 | ₹9.42 · 2,380 in stock | View |
 | SMAZ56-TP#C49274879TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,450 | ₹7.96 · 2,450 in stock | View |
