VISHAYDatasheet (PDF)

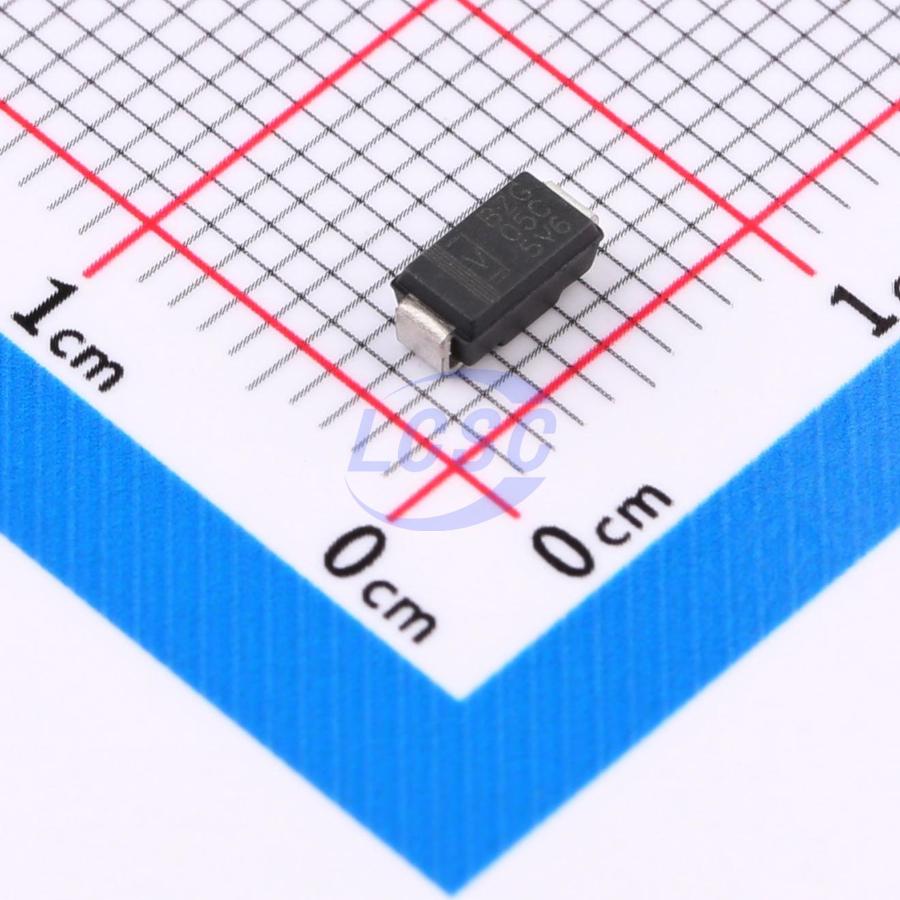

BZG05C5V6-M3-08
Zener Diode Independent 5.6V 1.25W Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE ZENER 5.6V 1.25W SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG05C5V6-M3-08
- Store part #
- C499576
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C499576
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.71 | ₹183.55 |
| 50+ | ₹29.26 | ₹1,463.00 |
| 150+ | ₹26.06 | ₹3,909.00 |
| 1,500+ | ₹22.08 | ₹33,120.00 |
| 3,000+ | ₹20.31 | ₹60,930.00 |
| 4,500+ | ₹19.24 | ₹86,580.00 |
5 × ₹36.71
₹183.55
excl. GST
₹216.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG05C5V6-M3-08
₹183.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 1.25W
- Reverse Leakage Current (Ir)
- 1uA@1V
- Impedance(Zzt)
- 7Ω
- Zener Voltage(Range)
- 5.2V~6V
- Zener Voltage(Nom)
- 5.6V
- Impedance(Zzk)
- 400Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.083 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZG05C5V6-HM3-08#C6475176VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 1,465 | ₹52.36 · 1,465 in stock | View | |
 | SMAZ5V6-TP#C49274883TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,620 | ₹8.76 · 2,620 in stock | View |
 | 1SMA4734#C2844869PANJIT · SMA(DO-214AC) | PANJIT | SMA(DO-214AC) | 5 | ₹10.56 · 5 in stock | View |
 | 1SMA4734A#C330243LGE · DO-214AC(SMA) | LGE | DO-214AC(SMA) | 2,025 | ₹13.71 · 2,025 in stock | View |
 | 1SMA4734_R1_00001#C391375PANJIT · SMA(DO-214AC) | PANJIT | SMA(DO-214AC) | 2,400 | ₹11.47 · 2,400 in stock | View |
