VISHAYDatasheet (PDF)

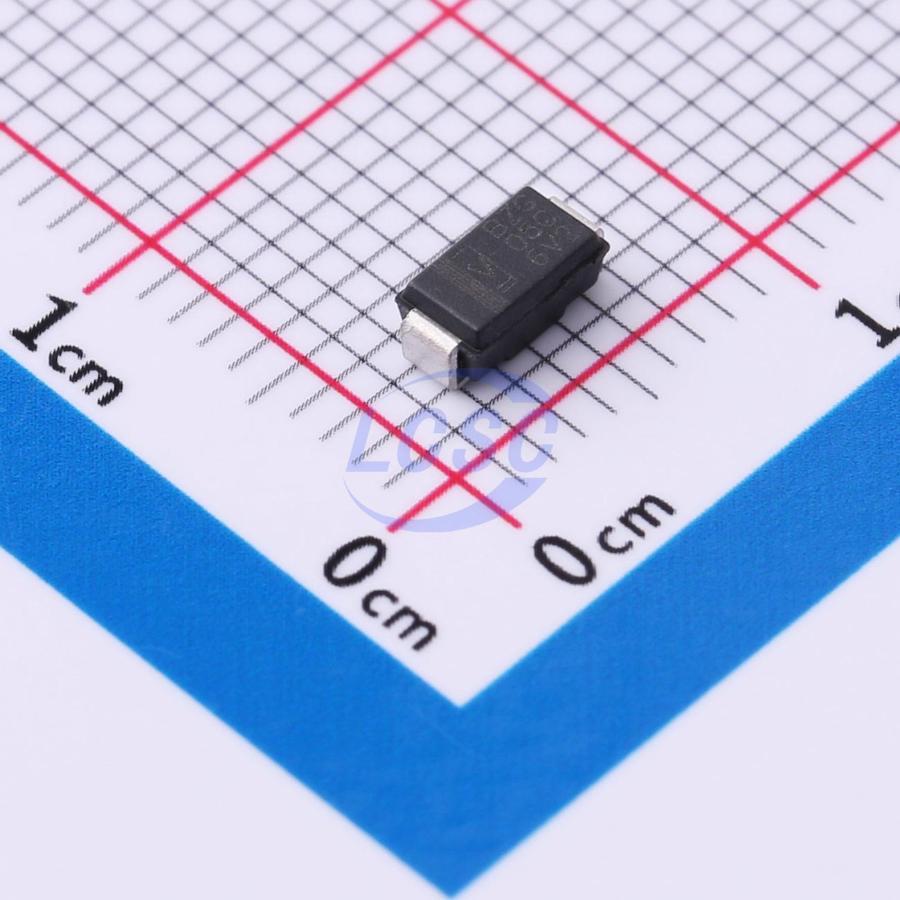

BZG05C6V2-M3-08
Zener Diode Independent 6.2V 1.25W Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE ZENER 6.2V 1.25W SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG05C6V2-M3-08
- Store part #
- C5280014
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C5280014
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.21 | ₹206.05 |
| 50+ | ₹32.69 | ₹1,634.50 |
| 150+ | ₹29.04 | ₹4,356.00 |
| 1,500+ | ₹21.78 | ₹32,670.00 |
| 3,000+ | ₹19.75 | ₹59,250.00 |
| 4,500+ | ₹18.54 | ₹83,430.00 |
5 × ₹41.21
₹206.05
excl. GST
₹243.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG05C6V2-M3-08
₹206.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 1.25W
- Reverse Leakage Current (Ir)
- 1uA@3V
- Impedance(Zzt)
- 4Ω
- Zener Voltage(Range)
- 5.8V~6.6V
- Zener Voltage(Nom)
- 6.2V
- Impedance(Zzk)
- 300Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- halogen-free, RoHS-compliant, and commercial grade
- halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAZ6V2-TP#C49274874TECH PUBLIC · SMA | TECH PUBLIC | SMA | 3,860 | ₹8.19 · 3,860 in stock | View |
 | 1SMA4735A#C49242699PDW · SMA | PDW | SMA | 60 | ₹3.69 · 60 in stock | View |
 | 1SMA4735A#C5248041GOODWORK · DO-214AC(SMA) | GOODWORK | DO-214AC(SMA) | 1,840 | ₹4.51 · 1,840 in stock | View |
 | 1SMA5920BT3G#C141342onsemi · SMA | onsemi | SMA | 5,040 | ₹21.19 · 5,040 in stock | View |
 | SMAZ6V2-MS#C22459342MSKSEMI · SMA | MSKSEMI | SMA | 1,350 | ₹11.48 · 1,350 in stock | View |
