VISHAYDatasheet (PDF)

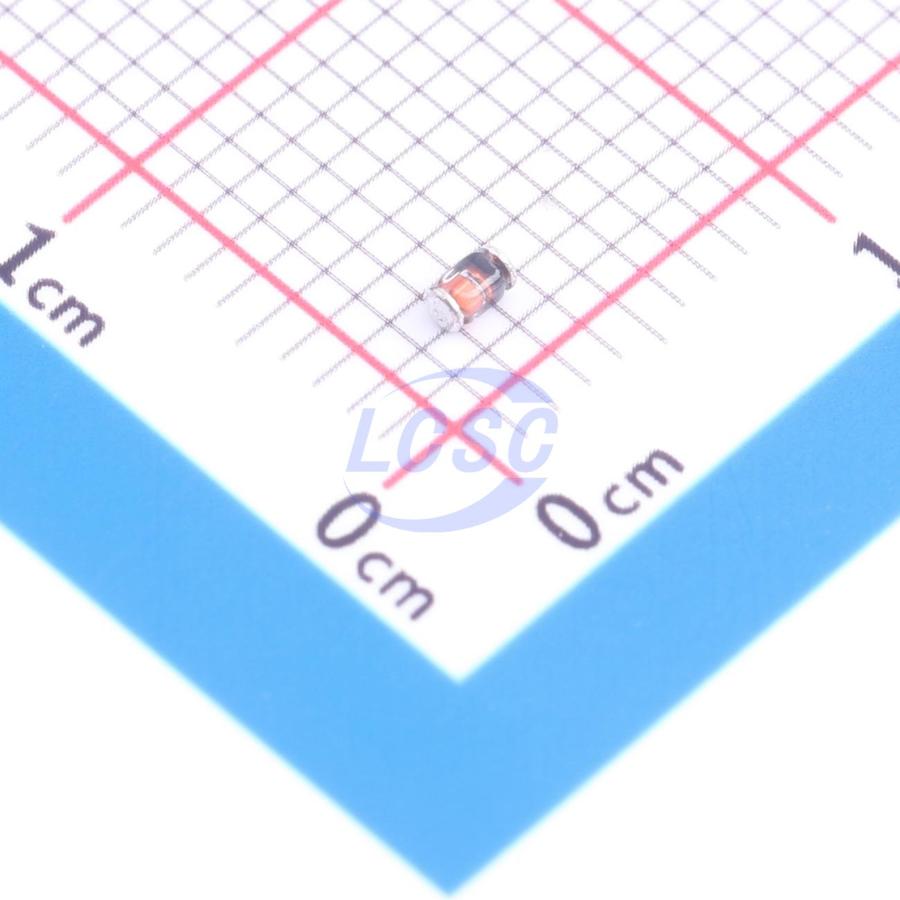

BZM55C10-TR
1 Independent 9.4V~10.6V 10V SMD Single Zener Diodes RoHS
SMDROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZM55C10-TR
- Store part #
- C6474205
- Package / case
- SMD
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6474205
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.72 | ₹93.60 |
| 50+ | ₹18.32 | ₹916.00 |
| 150+ | ₹18.06 | ₹2,709.00 |
| 500+ | ₹17.79 | ₹8,895.00 |
5 × ₹18.72
₹93.60
excl. GST
₹110.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZM55C10-TR
₹93.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@7.5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 9.4V~10.6V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 70Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.536 g
Overview
Applications
- Voltage stabilization
Key features
- Saving space
- Hermetic sealed parts
- Electrical data identical with the devices BZT55..series, TZM..series
- Fits onto SOD - 323
- Very sharp reverse characteristic
- Low reverse current level
- Very high stability
- Low noise
