VISHAYDatasheet (PDF)

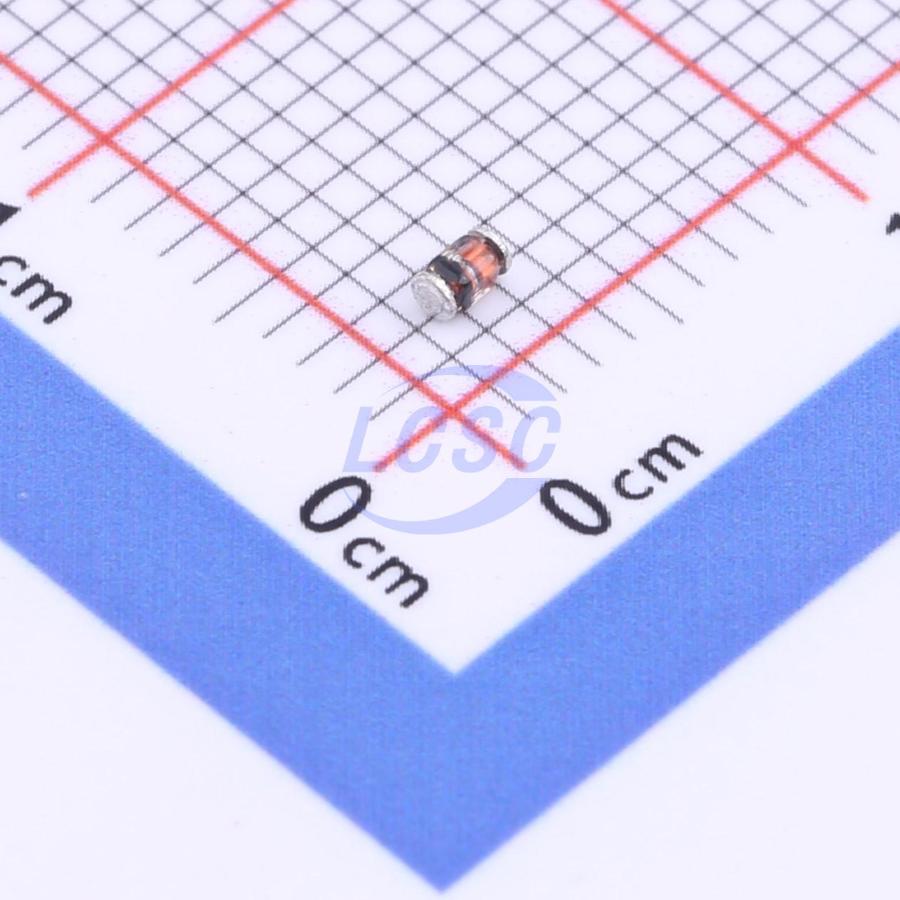

BZM55C18-TR
Zener Diode Independent 18V 500mW MicroMELF(SOD-80)
MicroMELF(SOD-80)ROHS3 CompliantActive
DIODE ZENER 18V 500mW MicroMELF(SOD-80)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZM55C18-TR
- Store part #
- C4749245
- Package / case
- MicroMELF(SOD-80)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
360 in stock
#C4749245
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.75 | ₹58.75 |
| 50+ | ₹9.42 | ₹471.00 |
| 150+ | ₹8.27 | ₹1,240.50 |
| 500+ | ₹7.40 | ₹3,700.00 |
| 2,500+ | ₹6.36 | ₹15,900.00 |
| 5,000+ | ₹6.01 | ₹30,050.00 |
5 × ₹11.75
₹58.75
excl. GST
₹69.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZM55C18-TR
₹58.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 13Ω
- Zener Voltage(Range)
- 16.8V~19.1V
- Zener Voltage(Nom)
- 18V
- Impedance(Zzk)
- 50Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Applications
- Voltage stabilization
Key features
- Saving space
- Hermetic sealed parts
- Electrical data identical with the devices BZT55..series, TZM..series
- Fits onto SOD-323
- Very sharp reverse characteristic
- Low reverse current level
- Very high stability
- Low noise
