VISHAYDatasheet (PDF)

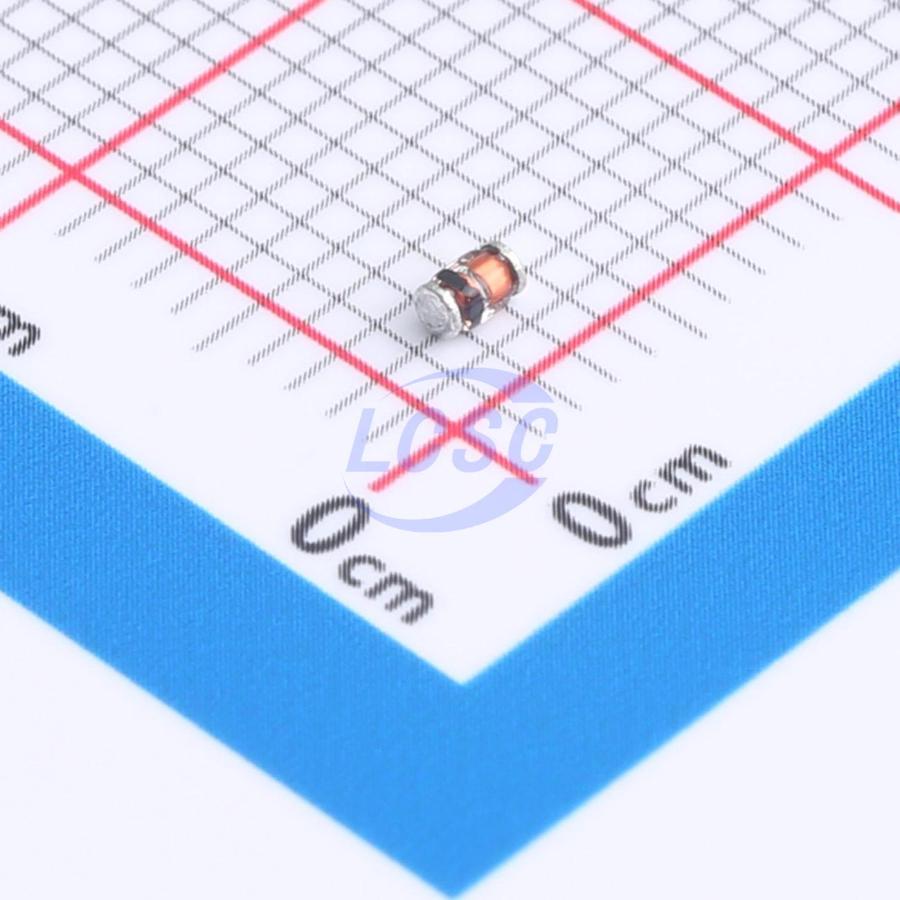

BZM55C5V6-TR
Zener Diode Independent 5.6V 500mW Surface Mount MicroMELF
MicroMELFROHS3 CompliantActive
DIODE ZENER 5.6V 500mW MicroMELF
- Manufacturer
- VISHAY
- Manufacturer part #
- BZM55C5V6-TR
- Store part #
- C3738645
- Package / case
- MicroMELF
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
710 in stock
#C3738645
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.62 | ₹78.10 |
| 50+ | ₹12.17 | ₹608.50 |
| 150+ | ₹10.44 | ₹1,566.00 |
| 500+ | ₹9.14 | ₹4,570.00 |
| 2,500+ | ₹8.10 | ₹20,250.00 |
| 5,000+ | ₹7.58 | ₹37,900.00 |
5 × ₹15.62
₹78.10
excl. GST
₹92.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZM55C5V6-TR
₹78.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 5.2V~6V
- Zener Voltage(Nom)
- 5.6V
- Impedance(Zzk)
- 450Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Applications
- Voltage stabilization
Key features
- Saving space
- Hermetic sealed parts
- Electrical data identical with the devices BZT55..series, TZM..series
- Fits onto SOD-323
- Very sharp reverse characteristic
- Low reverse current level
- Very high stability
- Low noise
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZM55B5V6-TR#C5361073VISHAY · MicroMELF | VISHAY | MicroMELF | 115 | ₹14.91 · 115 in stock | View |
 | BZM55B5V1#C5122135LGE · MicroMELF | LGE | MicroMELF | 150 | ₹7.89 · 150 in stock | View |
 | BZM55C5V1#C5122136LGE · MicroMELF | LGE | MicroMELF | 3,210 | ₹7.77 · 3,210 in stock | View |
 | BZM55C5V1-TR#C7093373VISHAY · MicroMELF | VISHAY | MicroMELF | 440 | ₹8.82 · 440 in stock | View |
