VISHAYDatasheet (PDF)

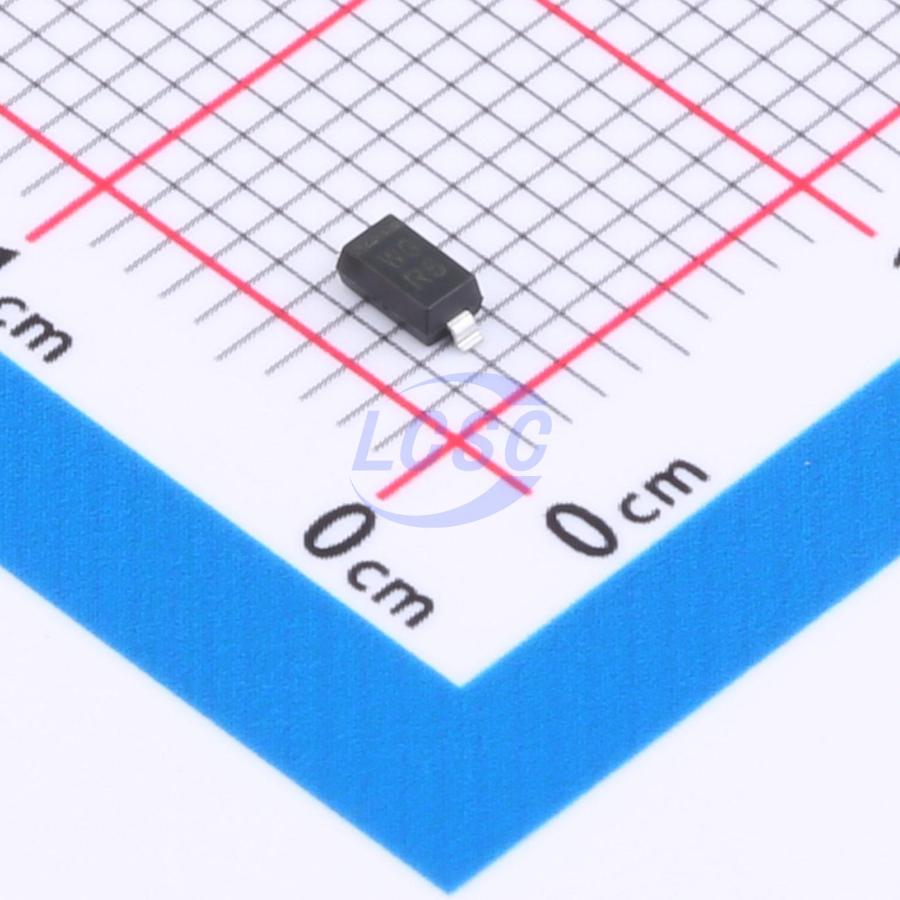

BZT52C10-E3-08
Zener Diode Independent 10V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 10V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C10-E3-08
- Store part #
- C5566143
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C5566143
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹5.95 | ₹29.75 |
| 50+ | ₹5.82 | ₹291.00 |
| 150+ | ₹5.74 | ₹861.00 |
| 500+ | ₹5.65 | ₹2,825.00 |
5 × ₹5.95
₹29.75
excl. GST
₹35.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C10-E3-08
₹29.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@7.5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 9.5V~10.5V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 70Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B10-E3-08#C5583182VISHAY · SOD-123 | VISHAY | SOD-123 | 370 | ₹76.06 · 370 in stock | View |
 | BZT52-B10_R1_00001#C6870800PANJIT · SOD-123 | PANJIT | SOD-123 | 1,720 | ₹3.69 · 1,720 in stock | View |
 | LMSZ5240BT1G#C124148LRC · SOD-123 | LRC | SOD-123 | 2,360 | ₹3.45 · 2,360 in stock | View |
 | MMSZ5240BQ#C20602081YANGJIE · SOD-123 | YANGJIE | SOD-123 | 1,080 | ₹4.59 · 1,080 in stock | View |
 | S-LMSZ5240BT1G#C2987847LRC · SOD-123 | LRC | SOD-123 | 2,800 | ₹4.15 · 2,800 in stock | View |
