DIODESDatasheet (PDF)

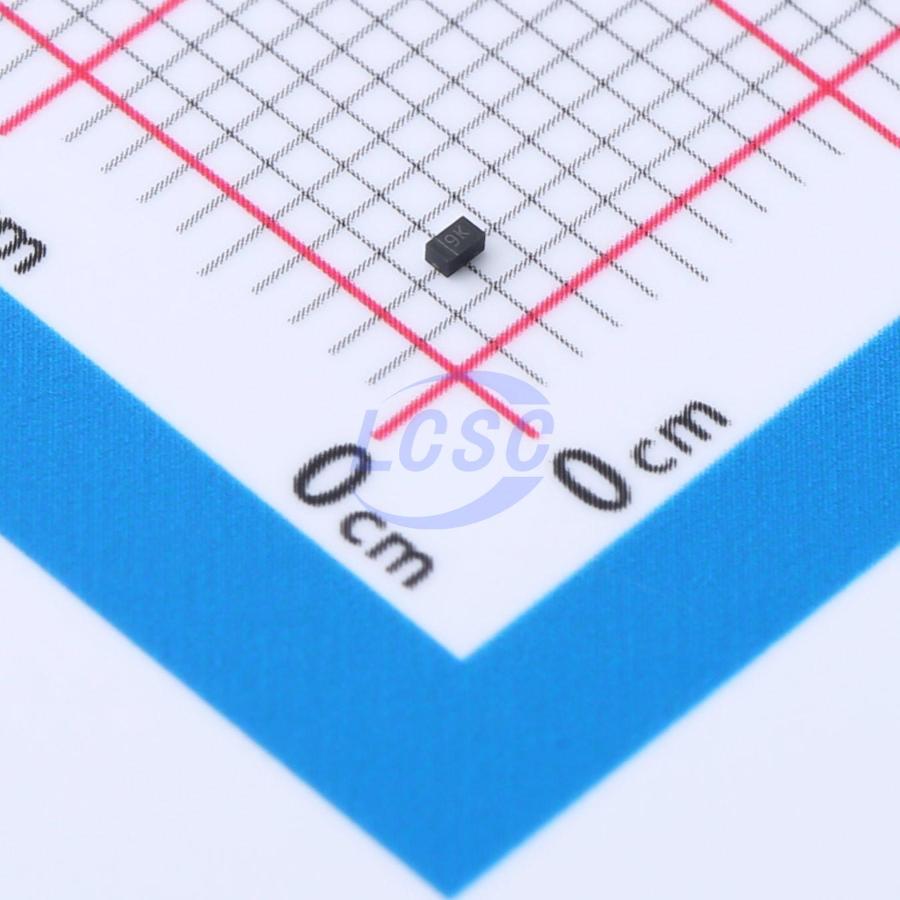

BZT52C13LP-7B
Zener Diode 13V 250mW
X1-DFN1006-2ROHS CompliantActive
DIODE ZENER 13V 250mW
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C13LP-7B
- Store part #
- C5381665
- Package / case
- X1-DFN1006-2
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C5381665
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.17 | ₹101.70 |
| 100+ | ₹8.60 | ₹860.00 |
| 300+ | ₹7.81 | ₹2,343.00 |
| 1,000+ | ₹7.22 | ₹7,220.00 |
| 5,000+ | ₹6.75 | ₹33,750.00 |
| 10,000+ | ₹6.51 | ₹65,100.00 |
10 × ₹10.17
₹101.70
excl. GST
₹120.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52C13LP-7B
₹101.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 12.4V~14.1V
- Zener Voltage(Nom)
- 13V
- Impedance(Zzk)
- 170Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.01 g
Overview
Key features
- Ultra-Small Leadless Surface Mount Package
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony-Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C13LP-7#C5248647DIODES · X1-DFN1006-2 | DIODES | X1-DFN1006-2 | 78 | ₹40.27 · 78 in stock | View |
 | BZT52C13LPQ-7#C5248648DIODES · X1-DFN1006-2 | DIODES | X1-DFN1006-2 | 50 | ₹11.50 · 50 in stock | View |
 | BZX884B13#C7529005amsem · DFN1006-2L | amsem | DFN1006-2L | 5,950 | ₹2.58 · 5,950 in stock | View |
 | PZU13BL,315#C553607Nexperia · DFN1006-2 | Nexperia | DFN1006-2 | 9,960 | ₹5.12 · 9,960 in stock | View |
 | BN52C13#C48533884BORN · DFN1006-2 | BORN | DFN1006-2 | 8,380 | ₹3.19 · 8,380 in stock | View |
