DIODESDatasheet (PDF)

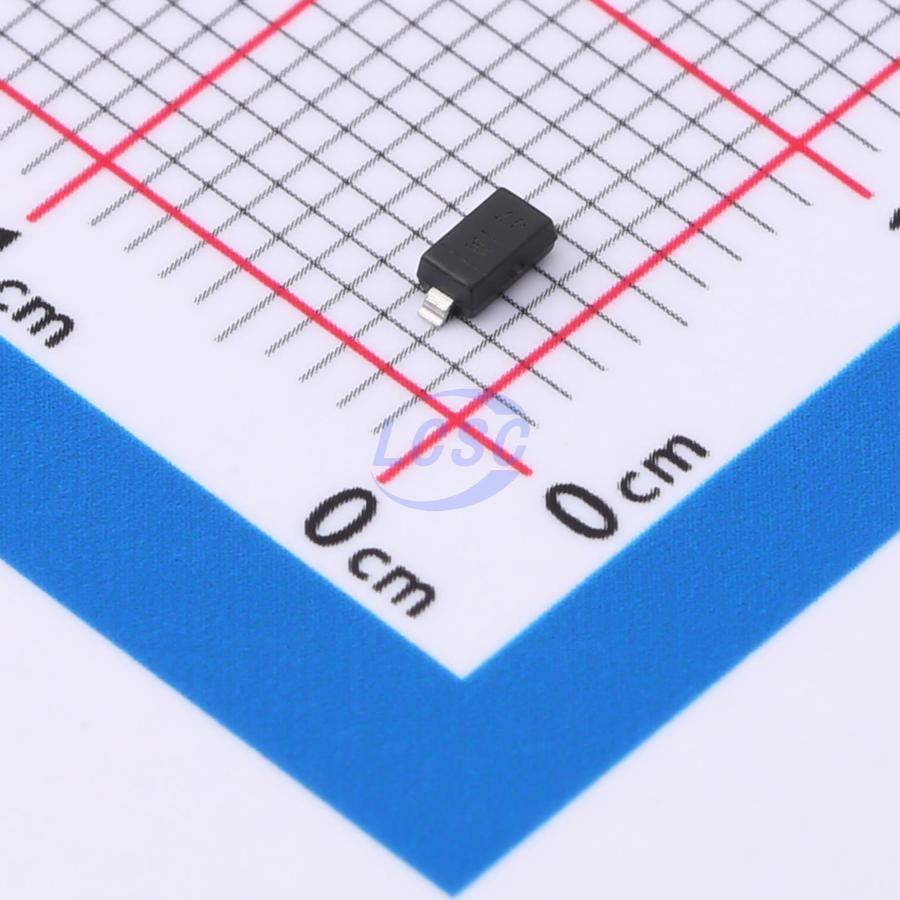

BZT52C13Q-7-F
Zener Diode 13V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 13V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C13Q-7-F
- Store part #
- C5224095
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C5224095
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.89 | ₹78.90 |
| 100+ | ₹6.31 | ₹631.00 |
| 300+ | ₹5.52 | ₹1,656.00 |
| 3,000+ | ₹4.93 | ₹14,790.00 |
| 6,000+ | ₹4.46 | ₹26,760.00 |
| 9,000+ | ₹4.22 | ₹37,980.00 |
10 × ₹7.89
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C13Q-7-F
₹78.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA@1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 12.4V~14.1V
- Zener Voltage(Nom)
- 13V
- Impedance(Zzk)
- 170Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
Key features
- Planar Die Construction
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C13#C2827913Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 600 | ₹2.00 · 600 in stock | View |
 | BZT52HC13WF-7#C5244713DIODES · SOD-123F | DIODES | SOD-123F | 1,420 | ₹6.55 · 1,420 in stock | View |
 | BZT52C13#C19077411R+O · SOD-123 | R+O | SOD-123 | 1,53,525 | ₹2.34 · 1,53,525 in stock | View |
 | BZT52C13#C54930261HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 2,450 | ₹1.40 · 2,450 in stock | View |
 | BZT52C13-7-F#C260858DIODES · SOD-123 | DIODES | SOD-123 | 475 | ₹26.45 · 475 in stock | View |
