DIODESDatasheet (PDF)

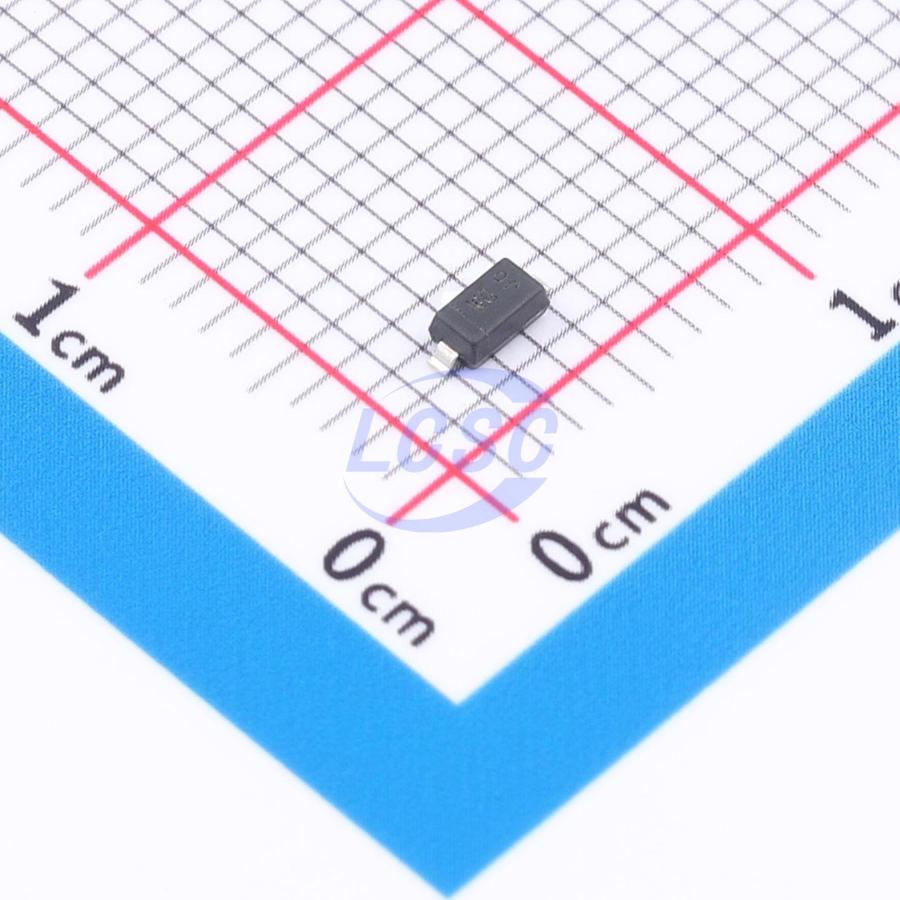

BZT52C30Q-7-F
1 Independent 28V~32V 30V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
DIODE ZENER 30V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C30Q-7-F
- Store part #
- C5248663
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C5248663
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.54 | ₹55.40 |
| 100+ | ₹5.42 | ₹542.00 |
| 300+ | ₹5.34 | ₹1,602.00 |
| 1,000+ | ₹5.27 | ₹5,270.00 |
10 × ₹5.54
₹55.40
excl. GST
₹65.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C30Q-7-F
₹55.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 28V~32V
- Zener Voltage(Nom)
- 30V
- Impedance(Zzk)
- 300Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- Planar Die Construction
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C30-7-F#C163721DIODES · SOD-123 | DIODES | SOD-123 | 275 | ₹8.41 · 275 in stock | View |
 | BZT52C30#C213134FMS(Formosa Microsemi) · SOD-123 | FMS(Formosa Microsemi) | SOD-123 | 50 | ₹2.69 · 50 in stock | View |
 | BZT52C30-G RHG#C486137Taiwan Semiconductor · SOD-123 | Taiwan Semiconductor | SOD-123 | 180 | ₹4.59 · 180 in stock | View |
 | BZT52C30#C19077418R+O · SOD-123 | R+O | SOD-123 | 2,77,100 | ₹2.29 · 2,77,100 in stock | View |
 | BZT52C30#C54930419HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 2,200 | ₹1.40 · 2,200 in stock | View |
