NexperiaDatasheet (PDF)

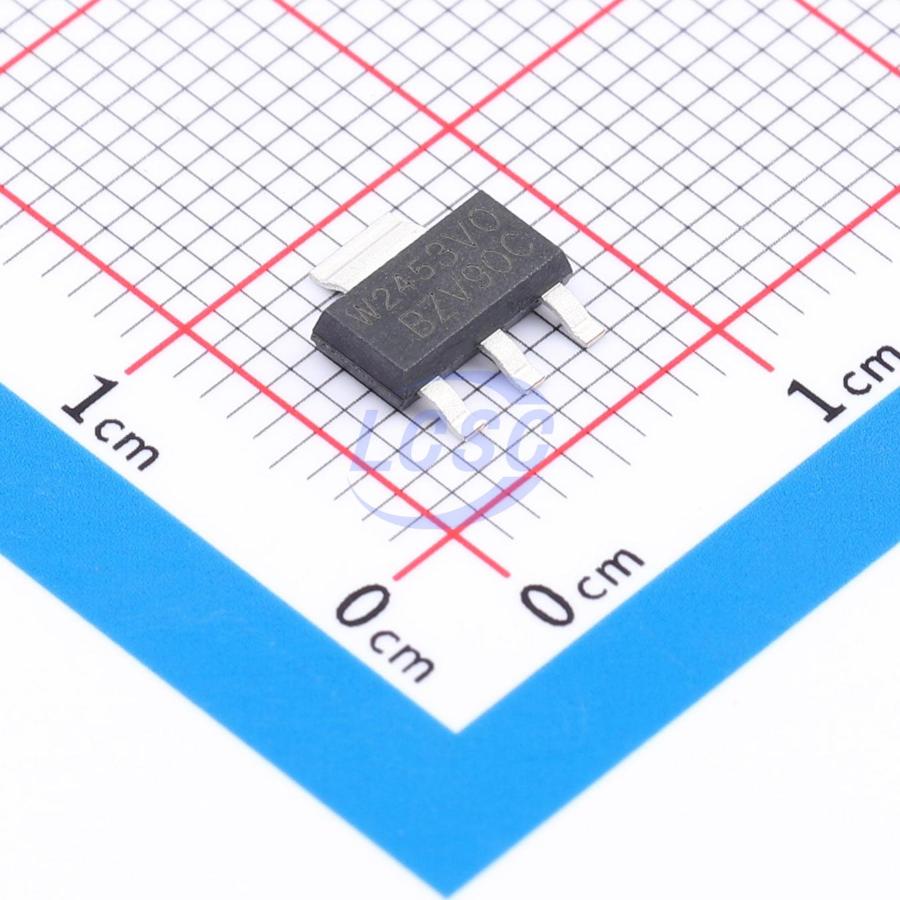

BZV90-C3V0,115
1 Independent 2.8V~3.2V 3V SOT-223-3 Single Zener Diodes RoHS
SOT-223-3ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV90-C3V0,115
- Store part #
- C550526
- Package / case
- SOT-223-3
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
128 in stock
#C550526
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.86 | ₹75.86 |
| 10+ | ₹73.90 | ₹739.00 |
| 30+ | ₹72.82 | ₹2,184.60 |
| 100+ | ₹71.51 | ₹7,151.00 |
1 × ₹75.86
₹75.86
excl. GST
₹89.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BZV90-C3V0,115
₹75.86 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -40℃~+150℃
- Pd - Power Dissipation
- 1.5W
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 2.8V~3.2V
- Zener Voltage(Nom)
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
Medium-power voltage regulator diodes in SOT223 plastic SMD packages. The diodes are available in the normalized E24 approx. ± 5% tolerance range. The series consists of 37 types with nominal working voltages from 2.4 to 75 V (BZV90-C2V4 to C75).
Applications
- General regulation functions
Key features
- Total power dissipation: max. 1500 mW
- Tolerance series: approx. ± 5%
- Working voltage range: nom. 2.4 to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: max. 40 W
