STDatasheet (PDF)

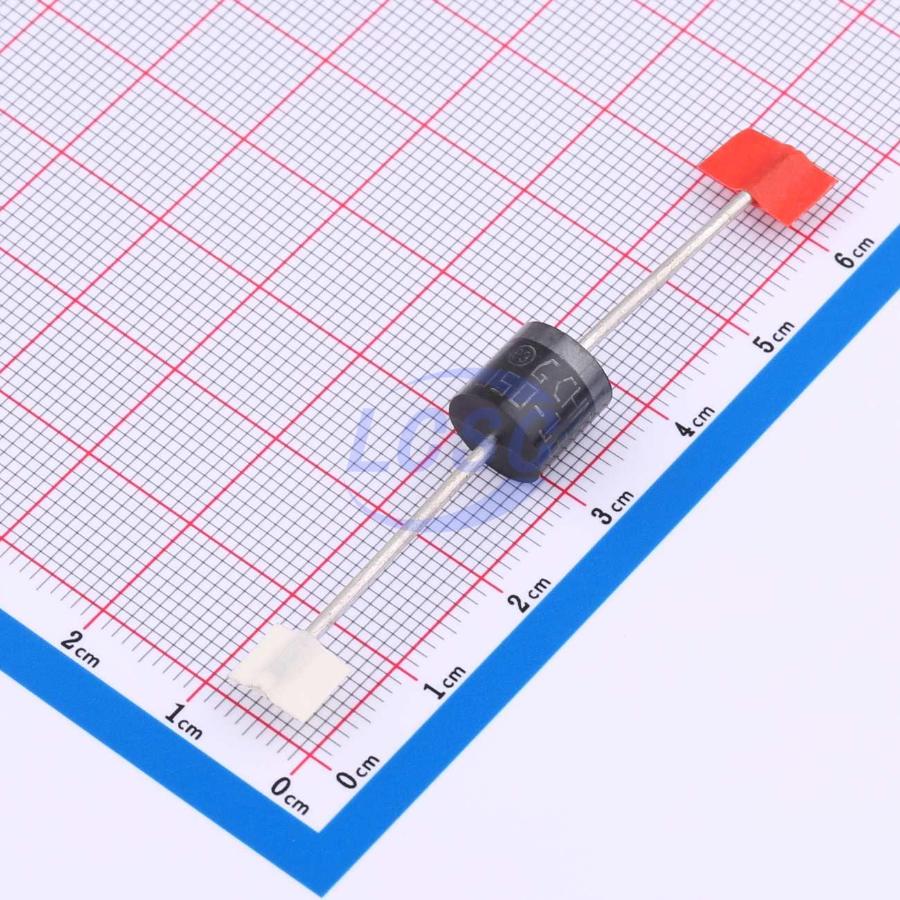

BZW50-18
41.5VC Clamp 1.446kA@8/20us Ipp TVS DIODE R6
R6ROHS3 CompliantActive
TVS DIODE 18VWM 41.5VC R6
- Manufacturer
- ST
- Manufacturer part #
- BZW50-18
- Store part #
- C3711442
- Package / case
- R6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
301 in stock
#C3711442
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹320.35 | ₹320.35 |
| 10+ | ₹271.11 | ₹2,711.10 |
| 30+ | ₹240.22 | ₹7,206.60 |
| 100+ | ₹208.68 | ₹20,868.00 |
| 500+ | ₹194.41 | ₹97,205.00 |
| 1,000+ | ₹188.16 | ₹1,88,160.00 |
1 × ₹320.35
₹320.35
excl. GST
₹378.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per box
BZW50-18
₹320.35 for 1 + GST
Specifications
- Clamping Voltage
- 41.5V
- Peak Pulse Current (Ipp)
- 1.446kA@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 20V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 100 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.005 g
