NexperiaDatasheet (PDF)

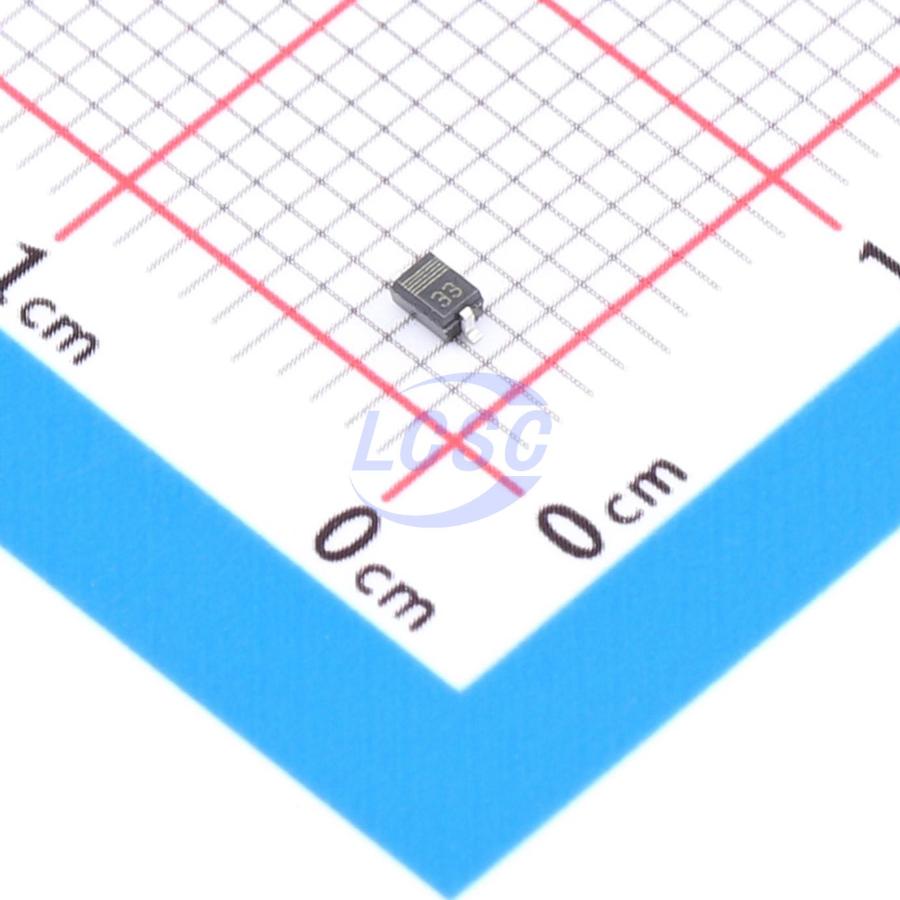

BZX384-A12X
1 Independent 11.88V~12.12V 12V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-A12X
- Store part #
- C20235152
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C20235152
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.43 | ₹68.43 |
| 10+ | ₹66.68 | ₹666.80 |
| 30+ | ₹65.59 | ₹1,967.70 |
| 100+ | ₹64.51 | ₹6,451.00 |
1 × ₹68.43
₹68.43
excl. GST
₹80.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-A12X
₹68.43 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±1%
- Operating Junction Temperature Range
- -40℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Zener Voltage(Range)
- 11.88V~12.12V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZX384-A12-QX#C7508004Nexperia · SOD-323 | Nexperia | SOD-323 | On request | ₹103.18 · 0 in stock | View | |
 | MM3Z12BW#C50326947YFW · SOD-323 | YFW | SOD-323 | 20 | ₹3.04 · 20 in stock | View |
 | BZT52B12SQ#C5185075YANGJIE · SOD-323 | YANGJIE | SOD-323 | 140 | ₹4.86 · 140 in stock | View |
 | MM3Z12-TD#C51902123TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,950 | ₹2.51 · 2,950 in stock | View |
 | PDZ12B,115-JSM#C53114140JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 3,200 | ₹5.74 · 3,200 in stock | View |
