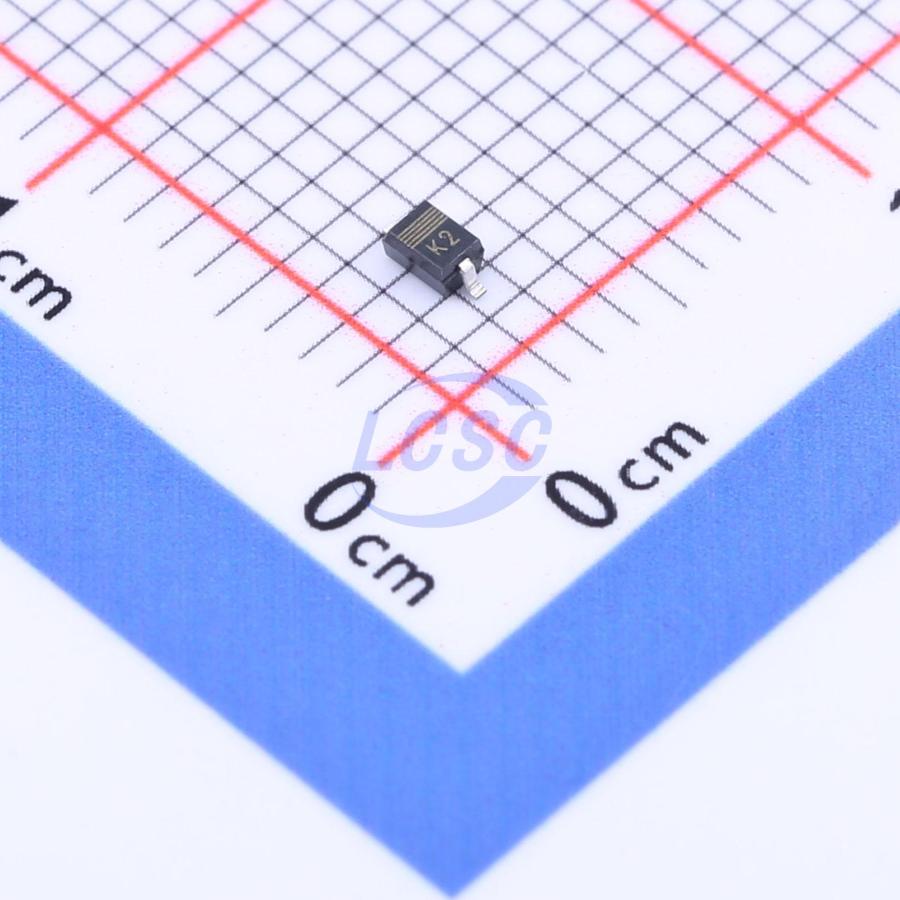

BZX384-B2V7,115
Zener Diode 1 Independent 2.7V 300mW Surface Mount SOD-323(SC-76)
SOD-323(SC-76)ROHS3 CompliantActive
DIODE ZENER 2.7V 300mW SOD-323(SC-76)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-B2V7,115
- Store part #
- C550552
- Package / case
- SOD-323(SC-76)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,750 in stock
#C550552
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.95 | ₹99.50 |
| 100+ | ₹7.87 | ₹787.00 |
| 300+ | ₹6.84 | ₹2,052.00 |
| 3,000+ | ₹5.77 | ₹17,310.00 |
| 6,000+ | ₹5.15 | ₹30,900.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.95
₹99.50
excl. GST
₹117.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-B2V7,115
₹99.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 20uA@1V
- Impedance(Zzt)
- 100Ω
- Zener Voltage(Range)
- 2.65V~2.75V
- Zener Voltage(Nom)
- 2.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B2V7S#C20599983YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 2,720 | ₹1.88 · 2,720 in stock | View |
 | MM3Z2V7ST1G#C891602onsemi · SOD-323 | onsemi | SOD-323 | 5 | ₹6.01 · 5 in stock | View |
 | MM3Z2V7-TD#C51902107TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,900 | ₹3.08 · 2,900 in stock | View |
 | MM3Z2V7BW#C2857005JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,000 | ₹2.75 · 1,000 in stock | View |
 | MM3Z2V7T1G#C236179onsemi · SOD-323 | onsemi | SOD-323 | 2,980 | ₹12.48 · 2,980 in stock | View |
