NexperiaDatasheet (PDF)

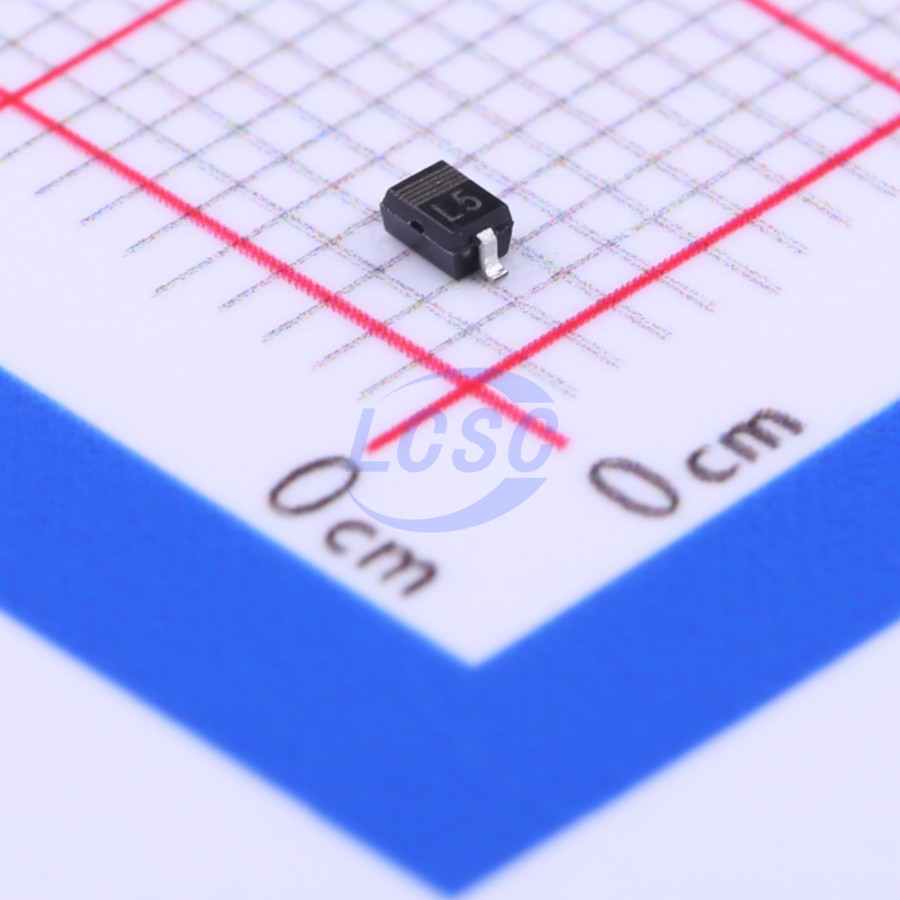

BZX384-B8V2,115
Zener Diode Independent 8.2V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 8.2V 300mW SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-B8V2,115
- Store part #
- C295459
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C295459
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.27 | ₹105.40 |
| 200+ | ₹4.10 | ₹820.00 |
| 600+ | ₹3.45 | ₹2,070.00 |
| 3,000+ | ₹3.07 | ₹9,210.00 |
| 9,000+ | ₹2.74 | ₹24,660.00 |
| 21,000+ | ₹2.55 | ₹53,550.00 |
20 × ₹5.27
₹105.40
excl. GST
₹124.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-B8V2,115
₹105.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 700nA@5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 8.04V~8.36V
- Zener Voltage(Nom)
- 8.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-B8V2-QX#C7508108Nexperia · SOD-323 | Nexperia | SOD-323 | 2,670 | ₹6.39 · 2,670 in stock | View |
 | MM3Z8V2ST1G#C462857onsemi · SOD-323 | onsemi | SOD-323 | On request | ₹9.29 · 0 in stock | View |
 | MM3Z8V2ST3G#C896762onsemi · SOD-323 | onsemi | SOD-323 | 300 | ₹5.29 · 300 in stock | View |
 | MM3Z8V2B#C2826557Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 3,000 | ₹2.58 · 3,000 in stock | View |
 | MM3Z8V2-TD#C51902119TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,950 | ₹2.58 · 2,950 in stock | View |
