NexperiaDatasheet (PDF)

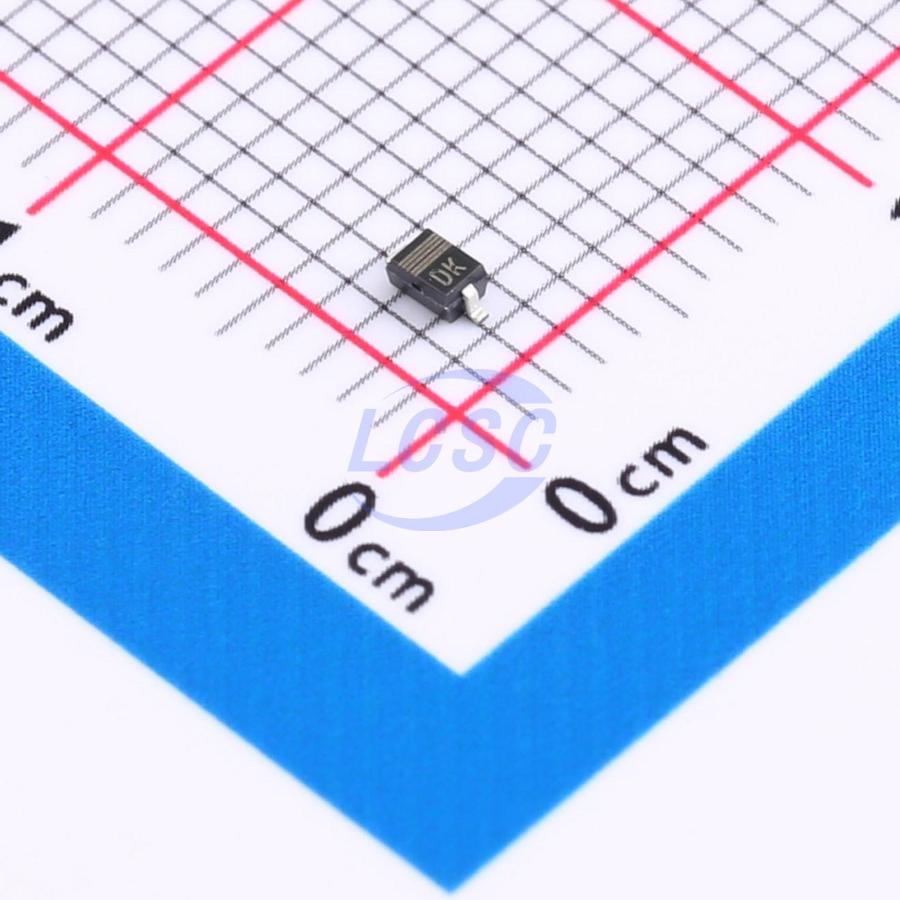

BZX384-C27,115
Zener Diode Independent 27V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 27V 300mW SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-C27,115
- Store part #
- C2928909
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C2928909
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.36 | ₹53.60 |
| 100+ | ₹4.21 | ₹421.00 |
| 300+ | ₹3.64 | ₹1,092.00 |
| 3,000+ | ₹3.21 | ₹9,630.00 |
| 6,000+ | ₹2.87 | ₹17,220.00 |
| 9,000+ | ₹2.70 | ₹24,300.00 |
10 × ₹5.36
₹53.60
excl. GST
₹63.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-C27,115
₹53.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@18.9V
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 25.1V~28.9V
- Zener Voltage(Nom)
- 27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.22 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z27W#C2856991JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 2,300 | ₹2.57 · 2,300 in stock | View |
 | MM3Z27W#C3019209Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 2,400 | ₹2.41 · 2,400 in stock | View |
 | MM3Z27VT1G#C116441onsemi · SOD-323 | onsemi | SOD-323 | 990 | ₹5.45 · 990 in stock | View |
 | SZMM3Z27VT1G#C604780onsemi · SOD-323 | onsemi | SOD-323 | 5 | ₹18.32 · 5 in stock | View |
 | MM3Z27#C746259HT(Shenzhen Jinyu Semicon) · SOD-323 | HT(Shenzhen Jinyu Semicon) | SOD-323 | 2,900 | ₹2.22 · 2,900 in stock | View |
