NexperiaDatasheet (PDF)

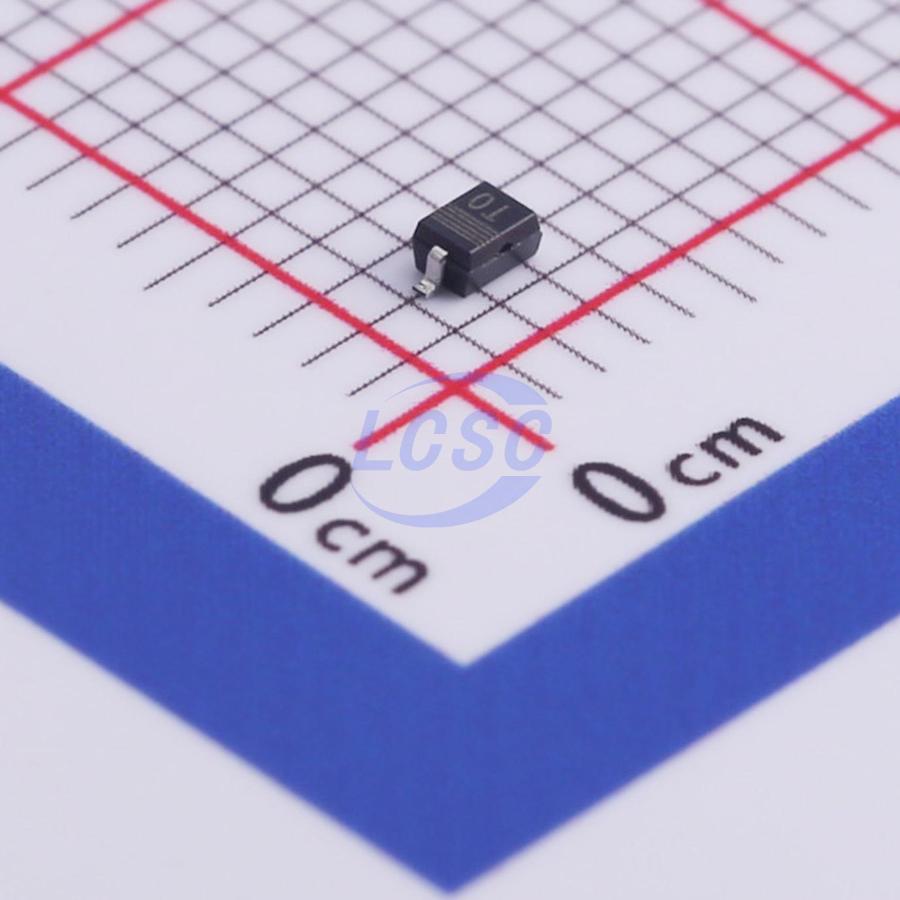

BZX384-C4V7,115
Zener Diode Independent 4.7V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 4.7V 300mW SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-C4V7,115
- Store part #
- C454980
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C454980
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.95 | ₹59.50 |
| 100+ | ₹4.68 | ₹468.00 |
| 300+ | ₹4.05 | ₹1,215.00 |
| 3,000+ | ₹3.56 | ₹10,680.00 |
| 6,000+ | ₹3.18 | ₹19,080.00 |
| 9,000+ | ₹2.99 | ₹26,910.00 |
10 × ₹5.95
₹59.50
excl. GST
₹70.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-C4V7,115
₹59.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 3uA@2V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 4.4V~5V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C4V7SQ#C2942526YANGJIE · SOD-323 | YANGJIE | SOD-323 | 2,740 | ₹4.17 · 2,740 in stock | View |
 | MM3Z4V7T1G#C236205onsemi · SOD-323 | onsemi | SOD-323 | 570 | ₹7.53 · 570 in stock | View |
 | MM3Z4V7W#C2856973JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 2,000 | ₹2.80 · 2,000 in stock | View |
 | MM3Z4V7W#C3019200Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 2,400 | ₹1.92 · 2,400 in stock | View |
 | MM3Z4V7#C216745Shikues · SOD-323 | Shikues | SOD-323 | 1,400 | ₹2.28 · 1,400 in stock | View |
