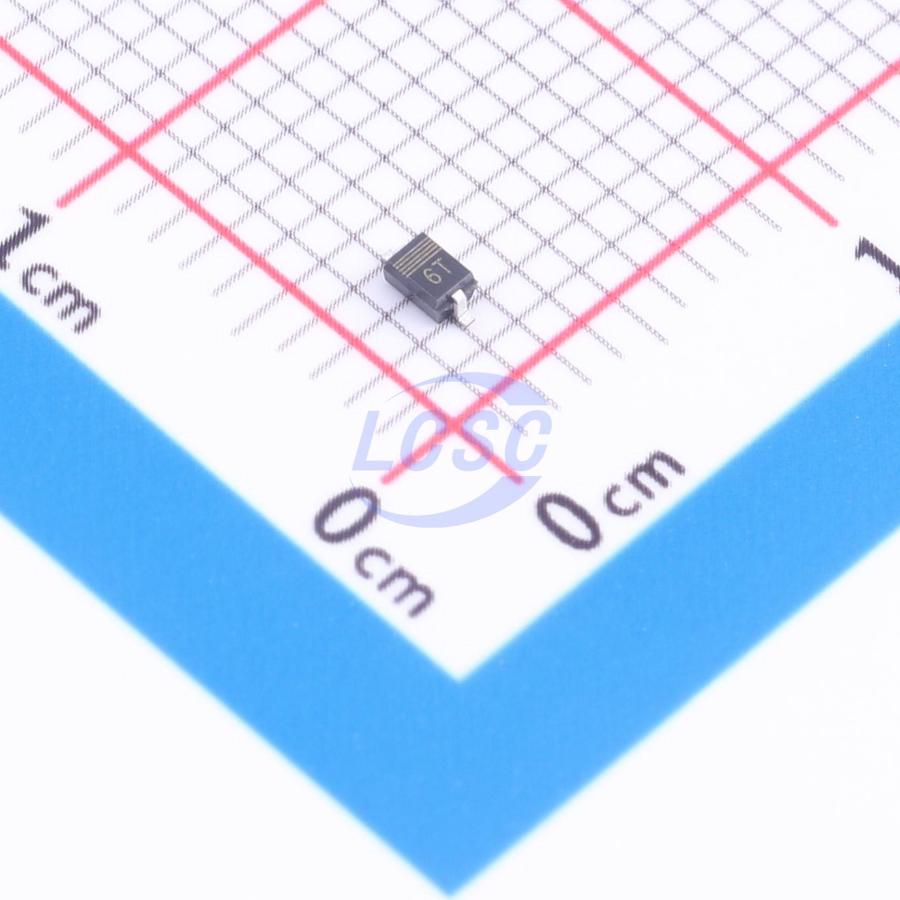

NexperiaDatasheet (PDF)
BZX38450-C2V2-QX
1 Independent 2.09V~2.31V 2.2V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX38450-C2V2-QX
- Store part #
- C5566368
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C5566368
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.10 | ₹95.50 |
| 50+ | ₹18.64 | ₹932.00 |
| 150+ | ₹18.34 | ₹2,751.00 |
| 500+ | ₹18.02 | ₹9,010.00 |
5 × ₹19.10
₹95.50
excl. GST
₹112.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX38450-C2V2-QX
₹95.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 4uA@1V
- Impedance(Zzt)
- 100Ω
- Zener Voltage(Range)
- 2.09V~2.31V
- Zener Voltage(Nom)
- 2.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Low- current voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package.
Applications
- Low-current general regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Tolerance series: approximately ± 5%
- Working voltage range: nominal 1.8 V to 10 V
- Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z2V2W#C2856965JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 1,850 | ₹2.50 · 1,850 in stock | View |
 | MM3Z2V2W#C4749049Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 2,900 | ₹1.92 · 2,900 in stock | View |
 | MM3Z2V2#C5185911Slkor · SOD-323 | Slkor | SOD-323 | 1,900 | ₹2.91 · 1,900 in stock | View |
 | MM3Z2V2#C118598ST(Semtech) · SOD-323 | ST(Semtech) | SOD-323 | 720 | ₹4.75 · 720 in stock | View |
 | MM3Z2V2-TD#C51902105TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,800 | ₹2.58 · 2,800 in stock | View |
