NexperiaDatasheet (PDF)

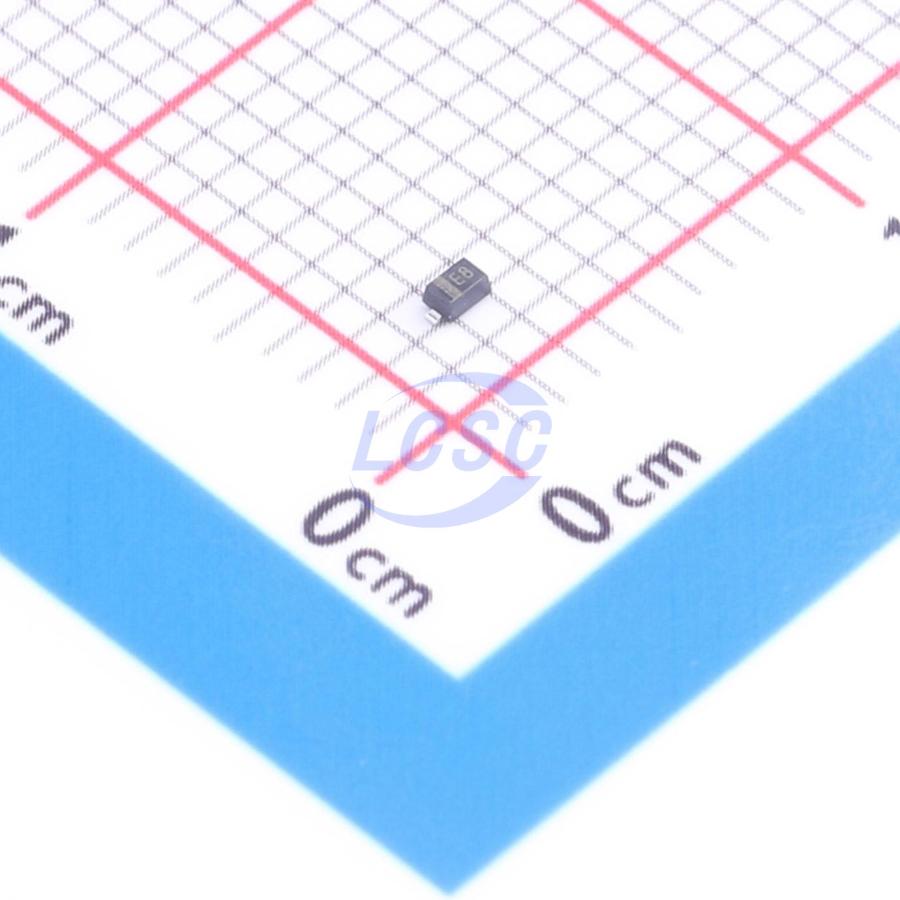

BZX585-B12,115
Zener Diode Independent 12V 300mW Surface Mount SOD-523(SC-79)
SOD-523(SC-79)ROHS3 CompliantActive
DIODE ZENER 12V 300mW SOD-523(SC-79)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX585-B12,115
- Store part #
- C503447
- Package / case
- SOD-523(SC-79)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,680 in stock
#C503447
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.05 | ₹60.50 |
| 100+ | ₹4.75 | ₹475.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 3,000+ | ₹3.61 | ₹10,830.00 |
| 6,000+ | ₹3.23 | ₹19,380.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
10 × ₹6.05
₹60.50
excl. GST
₹71.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX585-B12,115
₹60.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 2Ω
- Zener Voltage(Range)
- 11.76V~12.24V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX584C12#C2857133JSMSEMI · SOD-523 | JSMSEMI | SOD-523 | 50 | ₹2.74 · 50 in stock | View |
 | SZMM5Z12VT5GF#C3728746Nexperia · SOD-523 | Nexperia | SOD-523 | 99 | ₹36.92 · 99 in stock | View |
 | MM5Z12VT5GF#C3733255Nexperia · SOD-523 | Nexperia | SOD-523 | 190 | ₹17.11 · 190 in stock | View |
 | BZX585-C12-QX#C25006800Nexperia · SOD-523 | Nexperia | SOD-523 | 23,615 | ₹15.66 · 23,615 in stock | View |
 | BZT52C12T-7#C507911DIODES · SOD-523 | DIODES | SOD-523 | 6,760 | ₹19.61 · 6,760 in stock | View |
