NexperiaDatasheet (PDF)

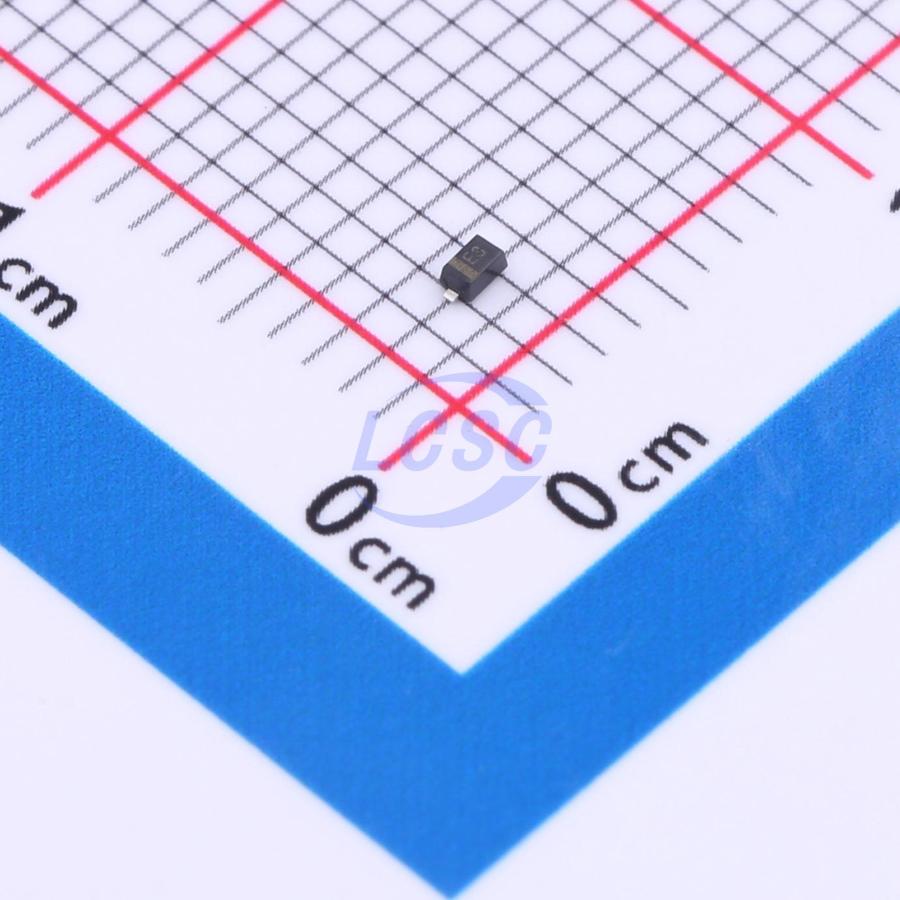

BZX585-B7V5,115
Zener Diode 1 Independent 7.5V 300mW Surface Mount SOD-523(SC-79)
SOD-523(SC-79)ROHS3 CompliantActive
DIODE ZENER 7.5V 300mW SOD-523(SC-79)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX585-B7V5,115
- Store part #
- C503400
- Package / case
- SOD-523(SC-79)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C503400
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.16 | ₹81.60 |
| 100+ | ₹6.40 | ₹640.00 |
| 300+ | ₹5.53 | ₹1,659.00 |
| 3,000+ | ₹4.88 | ₹14,640.00 |
| 6,000+ | ₹4.35 | ₹26,100.00 |
| 9,000+ | ₹4.09 | ₹36,810.00 |
10 × ₹8.16
₹81.60
excl. GST
₹96.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX585-B7V5,115
₹81.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 1uA@5V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 7.35V~7.65V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B7V5T-TP#C725506MCC · SOD-523 | MCC | SOD-523 | 120 | ₹6.76 · 120 in stock | View |
 | BZT52C7V5TQ-7-F#C526492DIODES · SOD-523 | DIODES | SOD-523 | 3,090 | ₹7.22 · 3,090 in stock | View |
 | BZT52C7V5T-7#C672297DIODES · SOD-523 | DIODES | SOD-523 | 1,030 | ₹6.42 · 1,030 in stock | View |
 | BZX584B7V5#C2910129JSCJ · SOD-523 | JSCJ | SOD-523 | 3,400 | ₹3.90 · 3,400 in stock | View |
 | BZX584B7V5#C968177YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 3,320 | ₹3.04 · 3,320 in stock | View |
