NexperiaDatasheet (PDF)

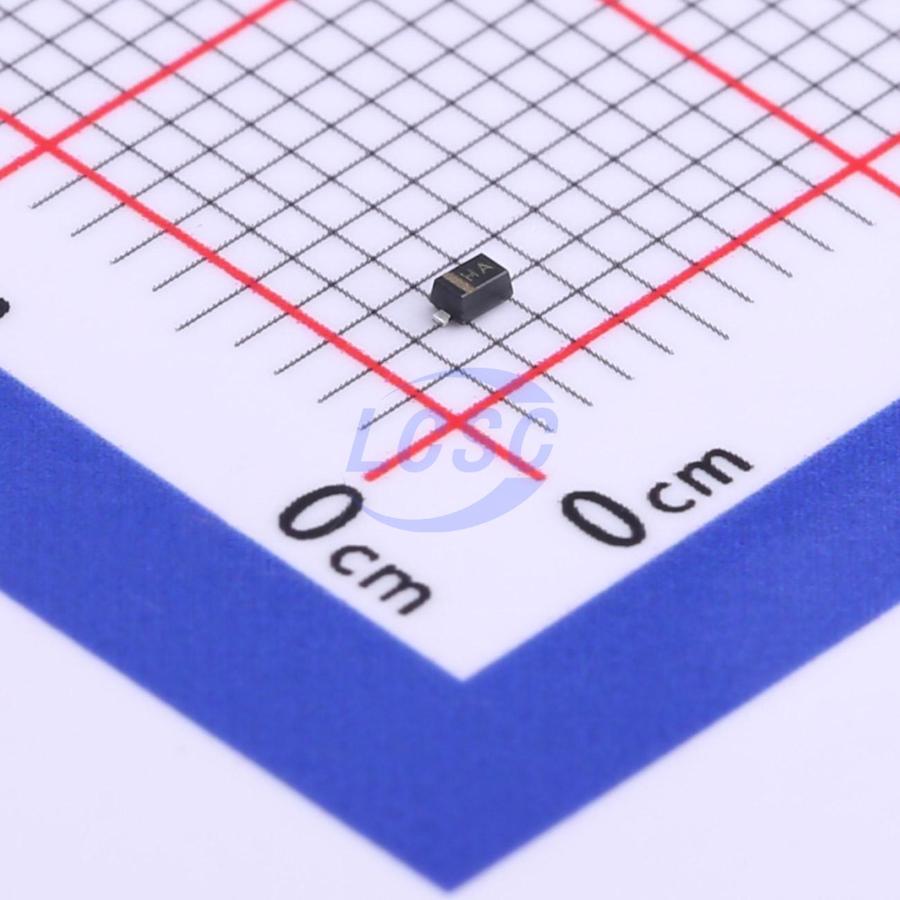

BZX585-C16,115
Zener Diode Independent 16V 300mW Surface Mount SOD-523(SC-79)
SOD-523(SC-79)ROHS3 CompliantActive
DIODE ZENER 16V 300mW SOD-523(SC-79)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX585-C16,115
- Store part #
- C455027
- Package / case
- SOD-523(SC-79)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,840 in stock
#C455027
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.30 | ₹83.00 |
| 100+ | ₹6.51 | ₹651.00 |
| 300+ | ₹5.62 | ₹1,686.00 |
| 3,000+ | ₹4.96 | ₹14,880.00 |
| 6,000+ | ₹4.42 | ₹26,520.00 |
| 9,000+ | ₹4.15 | ₹37,350.00 |
10 × ₹8.30
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX585-C16,115
₹83.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@11.2V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 15.2V~16.8V
- Zener Voltage(Nom)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM5Z16VT5GF#C3765555Nexperia · SOD-523 | Nexperia | SOD-523 | 2,840 | ₹7.44 · 2,840 in stock | View |
 | BZX584C16-G3-08#C3734683VISHAY · SOD-523 | VISHAY | SOD-523 | 75 | ₹9.79 · 75 in stock | View |
| SZMM5Z16VT1G#C463667onsemi · SOD-523 | onsemi | SOD-523 | 2,980 | ₹32.18 · 2,980 in stock | View | |
 | LM5Z16VT1G#C2912023LRC · SOD-523 | LRC | SOD-523 | 2,520 | ₹3.02 · 2,520 in stock | View |
 | MM5Z16#C52148492YTL · SOD-523 | YTL | SOD-523 | 2,950 | ₹1.87 · 2,950 in stock | View |
