NexperiaDatasheet (PDF)

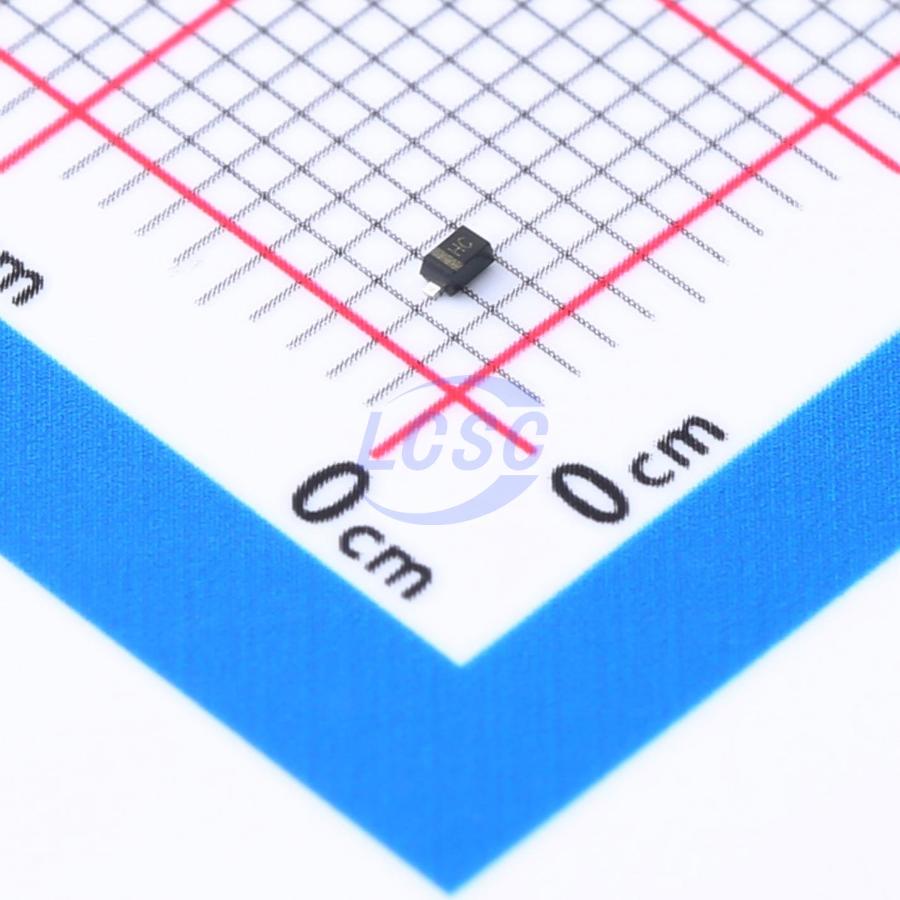

BZX585-C20,115
Zener Diode 20V 300mW Surface Mount SOD-523(SC-79)
SOD-523(SC-79)ROHS3 CompliantActive
DIODE ZENER 20V 300mW SOD-523(SC-79)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX585-C20,115
- Store part #
- C550634
- Package / case
- SOD-523(SC-79)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,710 in stock
#C550634
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.30 | ₹73.00 |
| 100+ | ₹5.74 | ₹574.00 |
| 300+ | ₹4.96 | ₹1,488.00 |
| 3,000+ | ₹4.37 | ₹13,110.00 |
| 6,000+ | ₹3.90 | ₹23,400.00 |
| 9,000+ | ₹3.66 | ₹32,940.00 |
10 × ₹7.30
₹73.00
excl. GST
₹86.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX585-C20,115
₹73.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@14V
- Impedance(Zzt)
- 55Ω
- Zener Voltage(Range)
- 19V~21V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX585-B20,115#C550595Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 8,920 | ₹9.62 · 8,920 in stock | View |
 | MM5Z20#C52148494YTL · SOD-523 | YTL | SOD-523 | 2,750 | ₹1.88 · 2,750 in stock | View |
 | MM5Z20VT1G#C891654onsemi · SOD-523 | onsemi | SOD-523 | 35 | ₹28.14 · 35 in stock | View |
 | MM5Z20V#C5342882XCH · SOD-523 | XCH | SOD-523 | 2,080 | ₹2.98 · 2,080 in stock | View |
 | MM5Z20AWT#C7528258Jingdao Microelectronics · SOD-523 | Jingdao Microelectronics | SOD-523 | 3,600 | ₹2.21 · 3,600 in stock | View |
