NexperiaDatasheet (PDF)

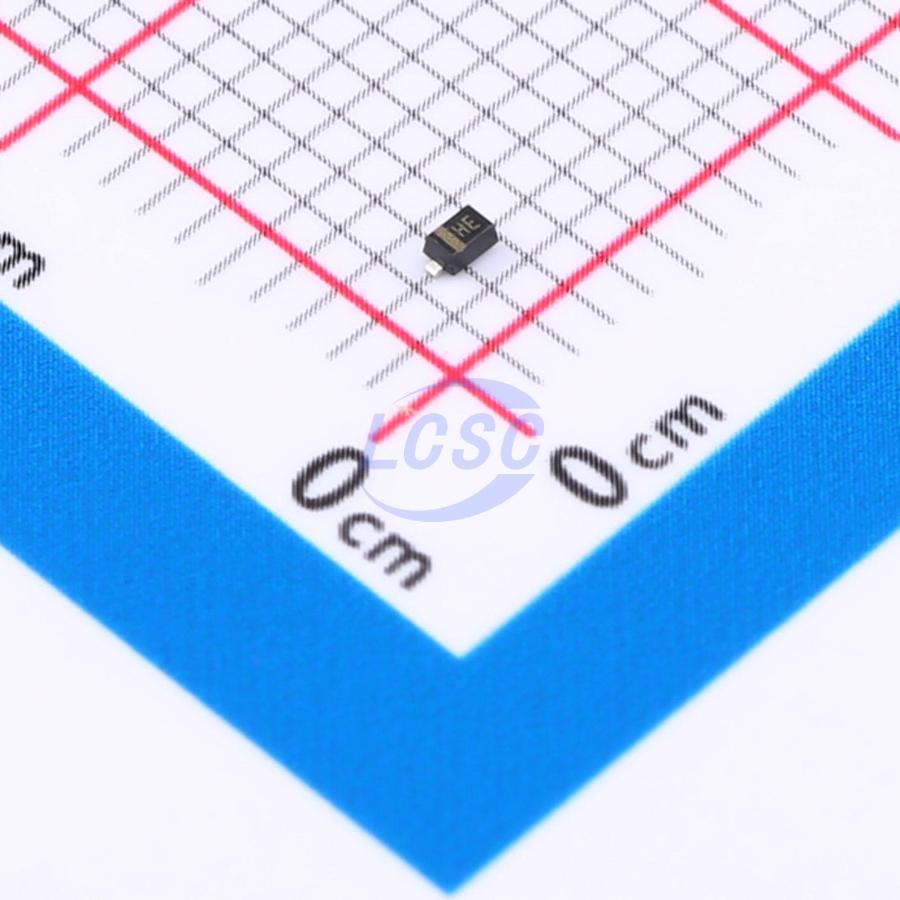

BZX585-C24,115
Zener Diode Independent 24V 300mW Surface Mount SOD-523(SC-79)
SOD-523(SC-79)ROHS3 CompliantActive
DIODE ZENER 24V 300mW SOD-523(SC-79)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX585-C24,115
- Store part #
- C550636
- Package / case
- SOD-523(SC-79)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,465 in stock
#C550636
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.66 | ₹88.30 |
| 50+ | ₹14.13 | ₹706.50 |
| 150+ | ₹12.37 | ₹1,855.50 |
| 500+ | ₹11.05 | ₹5,525.00 |
| 3,000+ | ₹9.99 | ₹29,970.00 |
| 6,000+ | ₹9.45 | ₹56,700.00 |
5 × ₹17.66
₹88.30
excl. GST
₹104.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX585-C24,115
₹88.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@16.8V
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 22.8V~25.2V
- Zener Voltage(Nom)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C24TQ-7-F#C5248657DIODES · SOD-523 | DIODES | SOD-523 | 20 | ₹8.48 · 20 in stock | View |
 | DDZ9709T-7#C2978922DIODES · SOD-523 | DIODES | SOD-523 | 2,980 | ₹7.37 · 2,980 in stock | View |
 | TCMM5Z24V#C5361336Tak Cheong · SOD-523 | Tak Cheong | SOD-523 | 2,860 | ₹2.80 · 2,860 in stock | View |
 | BZX584C24V#C968189YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 1,620 | ₹3.76 · 1,620 in stock | View |
 | MM5Z24#C52148496YTL · SOD-523 | YTL | SOD-523 | 2,850 | ₹1.87 · 2,850 in stock | View |
