NexperiaDatasheet (PDF)

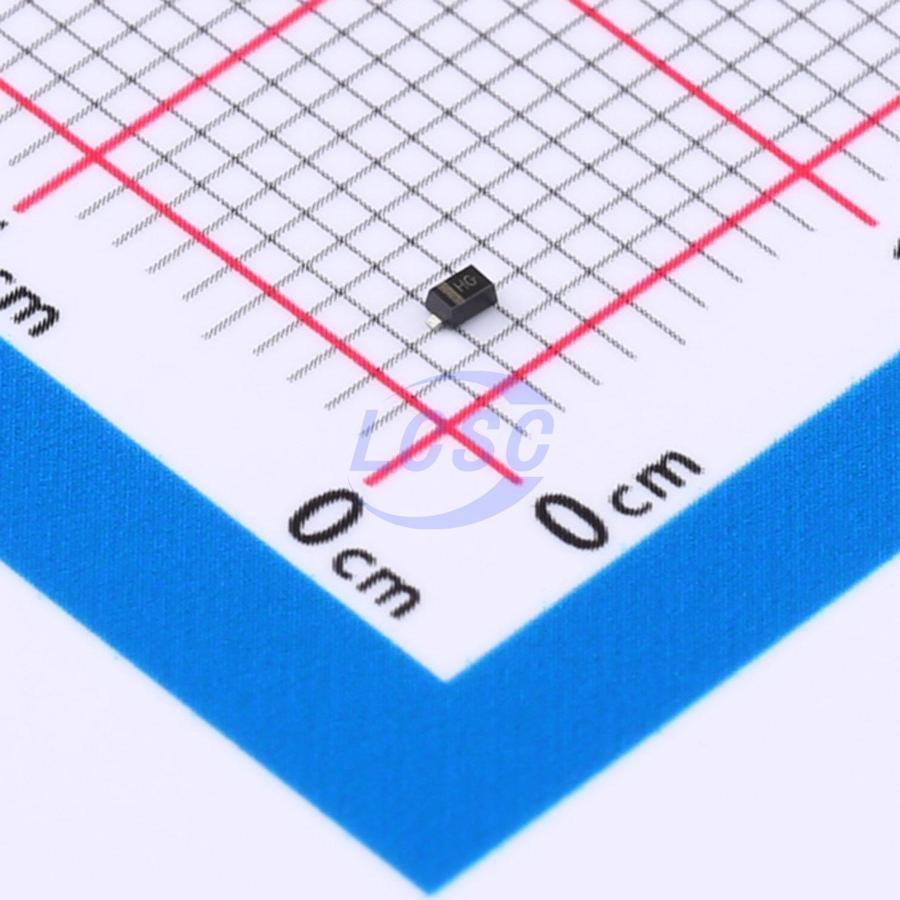

BZX585-C30,115
Zener Diode 30V 300mW Surface Mount SOD-523(SC-79)
SOD-523(SC-79)ROHS3 CompliantActive
DIODE ZENER 30V 300mW SOD-523(SC-79)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX585-C30,115
- Store part #
- C550643
- Package / case
- SOD-523(SC-79)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
270 in stock
#C550643
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.68 | ₹86.80 |
| 100+ | ₹6.95 | ₹695.00 |
| 300+ | ₹6.09 | ₹1,827.00 |
| 3,000+ | ₹5.44 | ₹16,320.00 |
| 6,000+ | ₹4.91 | ₹29,460.00 |
| 9,000+ | ₹4.66 | ₹41,940.00 |
10 × ₹8.68
₹86.80
excl. GST
₹102.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX585-C30,115
₹86.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@21V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 28.5V~31.5V
- Zener Voltage(Nom)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM5Z30#C52148498YTL · SOD-523 | YTL | SOD-523 | 2,950 | ₹1.87 · 2,950 in stock | View |
 | LM5Z30VT1G#C525397LRC · SOD-523 | LRC | SOD-523 | 4,700 | ₹3.76 · 4,700 in stock | View |
 | BZX584C30V#C968193YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 4,250 | ₹2.67 · 4,250 in stock | View |
 | BZX584C30#C2857142JSMSEMI · SOD-523 | JSMSEMI | SOD-523 | 3,050 | ₹2.66 · 3,050 in stock | View |
 | BZX584C30#C51315219CBI · SOD-523 | CBI | SOD-523 | 2,950 | ₹2.12 · 2,950 in stock | View |
