NexperiaDatasheet (PDF)

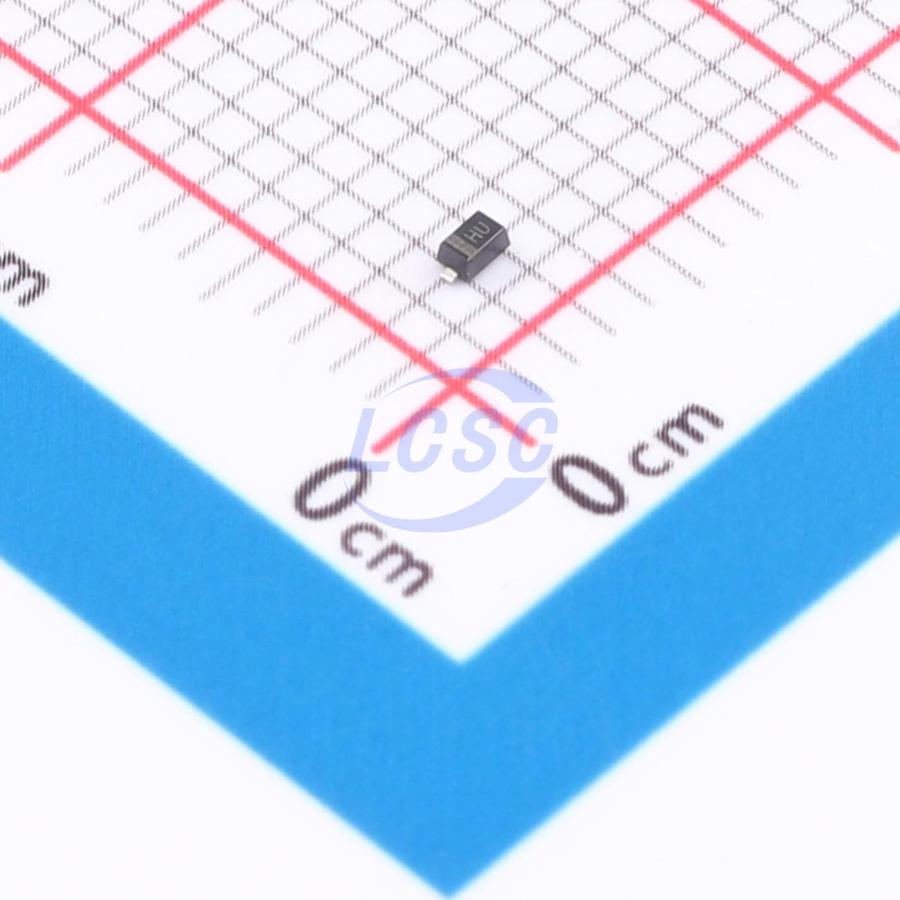

BZX585-C75,115
1 Independent 71.25V~78.75V 75V SOD-523(SC-79) Single Zener Diodes RoHS
SOD-523(SC-79)ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX585-C75,115
- Store part #
- C550671
- Package / case
- SOD-523(SC-79)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,340 in stock
#C550671
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.80 | ₹48.00 |
| 100+ | ₹4.68 | ₹468.00 |
| 300+ | ₹4.60 | ₹1,380.00 |
| 1,000+ | ₹4.54 | ₹4,540.00 |
10 × ₹4.80
₹48.00
excl. GST
₹56.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX585-C75,115
₹48.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@52.5V
- Impedance(Zzt)
- 255Ω
- Zener Voltage(Range)
- 71.25V~78.75V
- Zener Voltage(Nom)
- 75V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
- AEC-Q101 qualified
