NexperiaDatasheet (PDF)

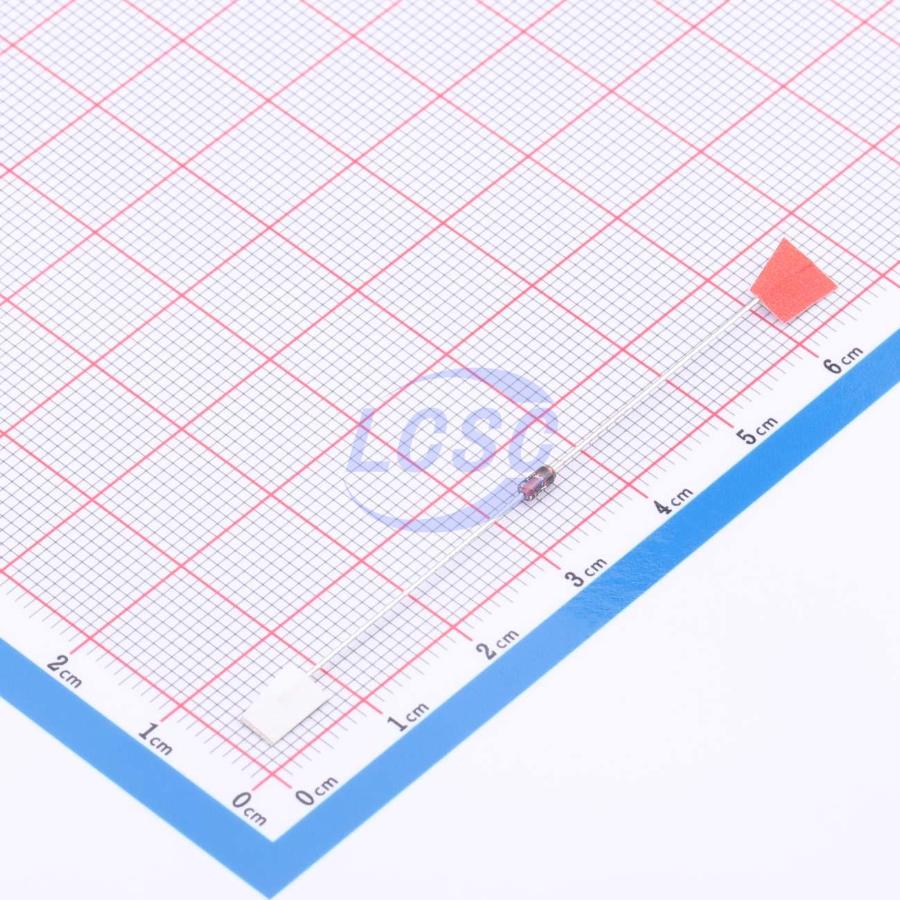

BZX79-B6V8,113
1 Independent 6.66V~6.94V 6.8V SOD27(DO-35) Single Zener Diodes RoHS
SOD27(DO-35)ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX79-B6V8,113
- Store part #
- C550770
- Package / case
- SOD27(DO-35)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C550770
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.51 | ₹92.55 |
| 50+ | ₹18.10 | ₹905.00 |
| 150+ | ₹17.82 | ₹2,673.00 |
| 500+ | ₹17.56 | ₹8,780.00 |
5 × ₹18.51
₹92.55
excl. GST
₹109.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZX79-B6V8,113
₹92.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 2uA@4V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 6.66V~6.94V
- Zener Voltage(Nom)
- 6.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.156 g
Overview
Low-power voltage regulator diodes in hermetically sealed leaded glass SOD27 (DO-35) packages. The diodes are available in the normalized E24 ±2% (BZX79-B) and approx. ±5% (BZX79-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 to 75 V.
Applications
- Low voltage stabilizers or voltage references.
Key features
- Total power dissipation: max. 500 mW
- Two tolerance series: ±2%, and approx. ±5%
- Working voltage range: nom. 2.4 to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: max. 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 6V8HCC#C3014347EIC · DO-35 | EIC | DO-35 | 4,660 | ₹8.85 · 4,660 in stock | View |
 | BZX55C6V8#C2978878EIC · DO-35 | EIC | DO-35 | 180 | ₹4.43 · 180 in stock | View |
 | 1N5235BPF#C7497639ST(Semtech) · DO-35 | ST(Semtech) | DO-35 | 500 | ₹1.61 · 500 in stock | View |
 | BZX55C6V8#C5158981LGE · DO-35 | LGE | DO-35 | 400 | ₹2.24 · 400 in stock | View |
 | BZX55C6V8PF-M#C7497993ST(Semtech) · DO-35 | ST(Semtech) | DO-35 | 5,000 | ₹2.38 · 5,000 in stock | View |
