NexperiaDatasheet (PDF)

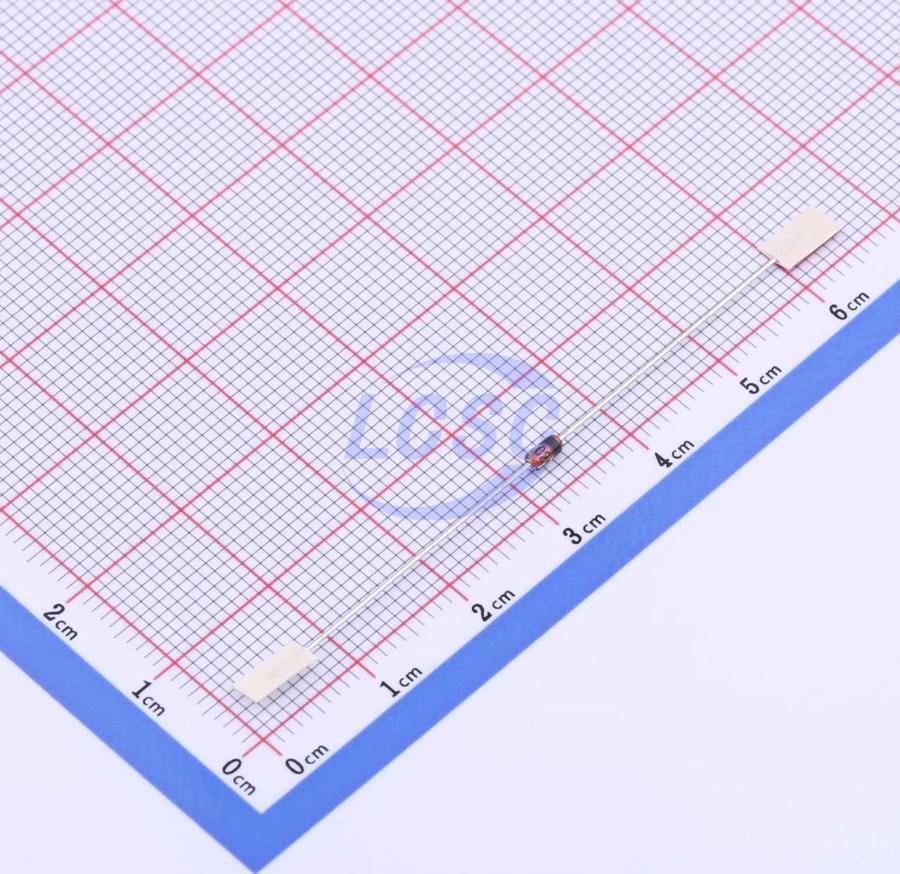

BZX79-C2V7,113
Zener Diode Independent 2.7V 500mW Through Hole SOD27(DO-35)
SOD27(DO-35)ROHS3 CompliantActive
DIODE ZENER 2.7V 500mW SOD27(DO-35)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX79-C2V7,113
- Store part #
- C550818
- Package / case
- SOD27(DO-35)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
340 in stock
#C550818
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.54 | ₹50.80 |
| 200+ | ₹2.49 | ₹498.00 |
| 600+ | ₹2.45 | ₹1,470.00 |
| 2,000+ | ₹2.42 | ₹4,840.00 |
20 × ₹2.54
₹50.80
excl. GST
₹59.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZX79-C2V7,113
₹50.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 20uA@1V
- Impedance(Zzt)
- 75Ω
- Zener Voltage(Range)
- 2.5V~2.9V
- Zener Voltage(Nom)
- 2.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.1 g
Overview
Low-power voltage regulator diodes in hermetically sealed leaded glass SOD27 (DO-35) packages. The diodes are available in the normalized E24 ±2% (BZX79-B) and approx. ±5% (BZX79-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 to 75 V.
Applications
- Low voltage stabilizers or voltage references.
Key features
- Total power dissipation: max. 500 mW
- Two tolerance series: ±2%, and approx. ±5%
- Working voltage range: nom. 2.4 to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: max. 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX55C2V7PF-M#C7497935ST(Semtech) · DO-35 | ST(Semtech) | DO-35 | 4,650 | ₹2.24 · 4,650 in stock | View |
 | BZX55C2V7#C5190026LGE · DO-35 | LGE | DO-35 | 2,420 | ₹3.00 · 2,420 in stock | View |
 | BZX79C2V7#C895316onsemi · DO-35 | onsemi | DO-35 | 340 | ₹6.06 · 340 in stock | View |
 | 1N5223BPF#C7497627ST(Semtech) · DO-35 | ST(Semtech) | DO-35 | 1,850 | ₹2.63 · 1,850 in stock | View |
 | 1N5222BPF#C19271495ST(Semtech) · DO-35 | ST(Semtech) | DO-35 | 260 | ₹3.31 · 260 in stock | View |
