NexperiaDatasheet (PDF)

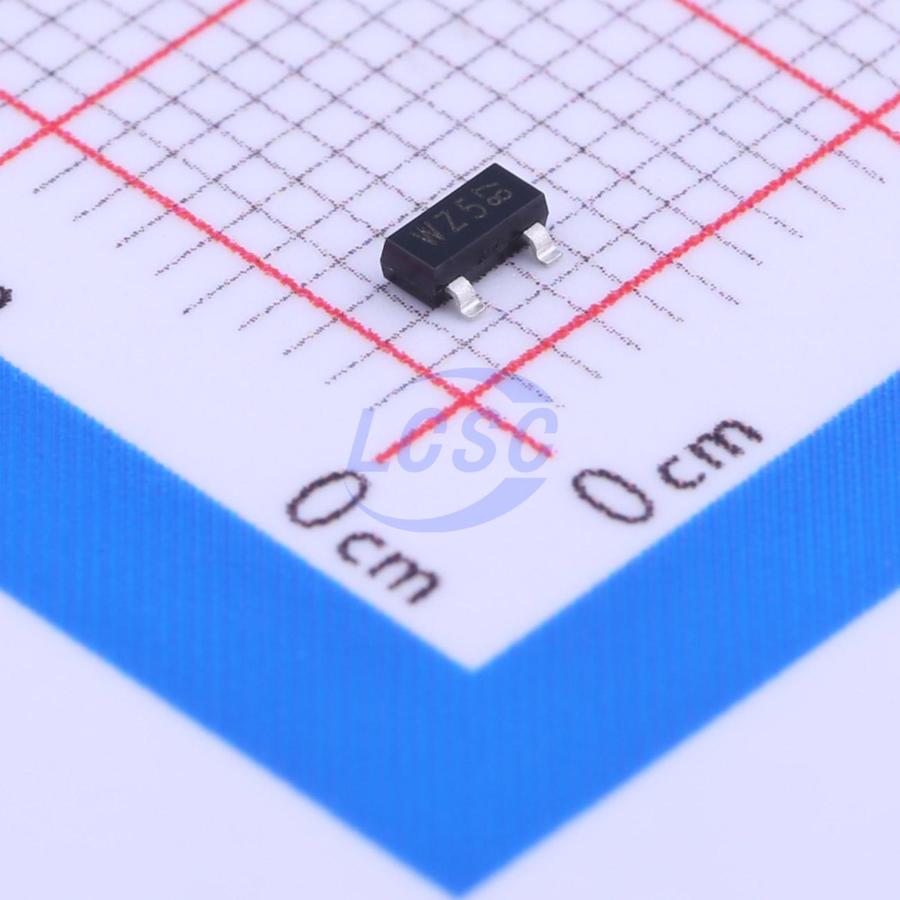

BZX84-B27,215
Zener Diode Independent 27V 250mW Surface Mount SOT-23(TO-236AB)
SOT-23(TO-236AB)ROHS3 CompliantActive
DIODE ZENER 27V 250mW SOT-23(TO-236AB)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84-B27,215
- Store part #
- C282543
- Package / case
- SOT-23(TO-236AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C282543
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.27 | ₹105.40 |
| 200+ | ₹4.11 | ₹822.00 |
| 600+ | ₹3.48 | ₹2,088.00 |
| 3,000+ | ₹2.90 | ₹8,700.00 |
| 9,000+ | ₹2.55 | ₹22,950.00 |
| 21,000+ | ₹2.38 | ₹49,980.00 |
20 × ₹5.27
₹105.40
excl. GST
₹124.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84-B27,215
₹105.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -40℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 50nA@18.9V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 26.5V~27.5V
- Zener Voltage(Nom)
- 27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.038 g
Overview
Low- power voltage regulator diodes in a small SOT23 (TO- 236AB) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX84- A), ± 2% (BZX84- B) and approximately ± 5% (BZX84- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 250 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84-A27,215#C2959809Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 59,640 | ₹7.50 · 59,640 in stock | View |
 | BZX84B27#C5359922MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,600 | ₹4.35 · 1,600 in stock | View |
 | BZX84-C27,215#C96229Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 15,800 | ₹6.10 · 15,800 in stock | View |
 | BZX84B27-7-F#C5244754DIODES · SOT-23 | DIODES | SOT-23 | 10 | ₹6.64 · 10 in stock | View |
| BZX84B27#C41433743YFW · SOT-23 | YFW | SOT-23 | 3,000 | ₹3.07 · 3,000 in stock | View | |
