NexperiaDatasheet (PDF)

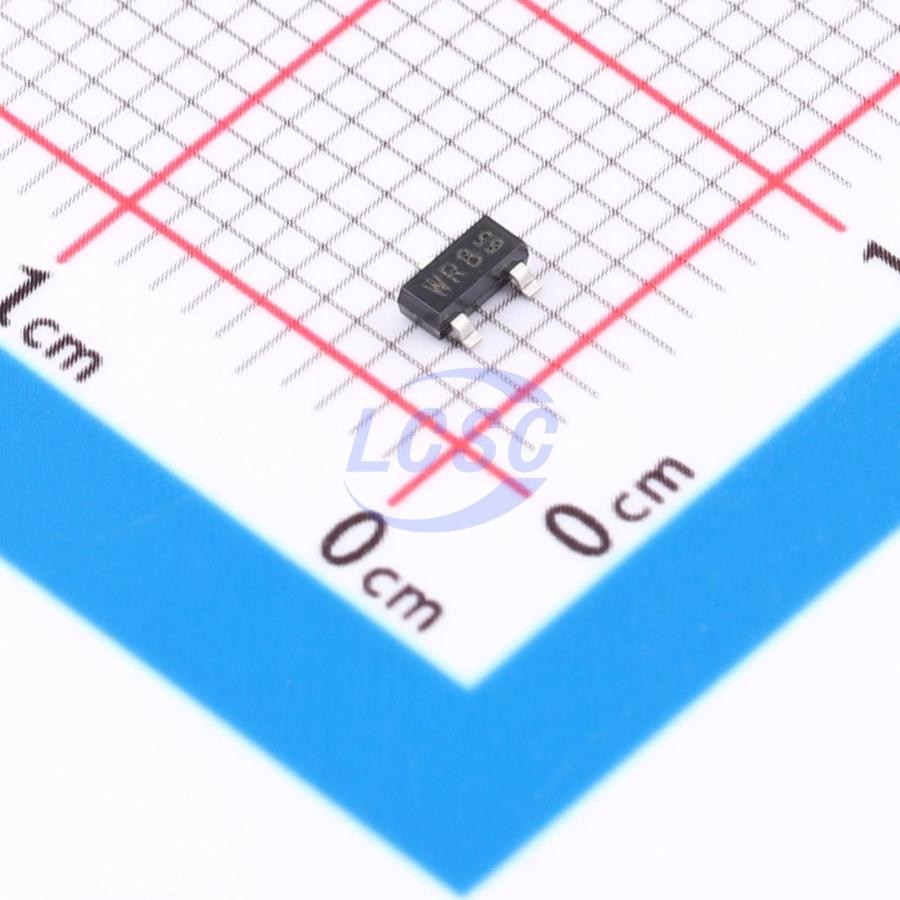

BZX84-B7V5-QR
1 Independent 7.35V~7.65V 7.5V SOT-23(TO-236AB) Single Zener Diodes RoHS
SOT-23(TO-236AB)ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84-B7V5-QR
- Store part #
- C7508242
- Package / case
- SOT-23(TO-236AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C7508242
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.49 | ₹54.90 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.72 | ₹1,116.00 |
| 3,000+ | ₹3.28 | ₹9,840.00 |
| 6,000+ | ₹2.92 | ₹17,520.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.49
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84-B7V5-QR
₹54.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 7.35V~7.65V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Low- power voltage regulator diodes in a small SOT23 (TO- 236AB) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX84- A), ± 2% (BZX84- B) and approximately ± 5% (BZX84- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 250 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84-B7V5,215#C295458Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 1,053 | ₹53.90 · 1,053 in stock | View |
| BZX84-A7V5-QR#C7508190Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 242 | ₹121.20 · 242 in stock | View | |
 | BZX84-C7V5,215#C131669Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 6,86,260 | ₹2.94 · 6,86,260 in stock | View |
 | BZX84C7V5LT1G#C236201onsemi · SOT-23 | onsemi | SOT-23 | 1,070 | ₹6.11 · 1,070 in stock | View |
 | BZX84-C7V5-QR#C7508312Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 220 | ₹13.16 · 220 in stock | View |
