NexperiaDatasheet (PDF)

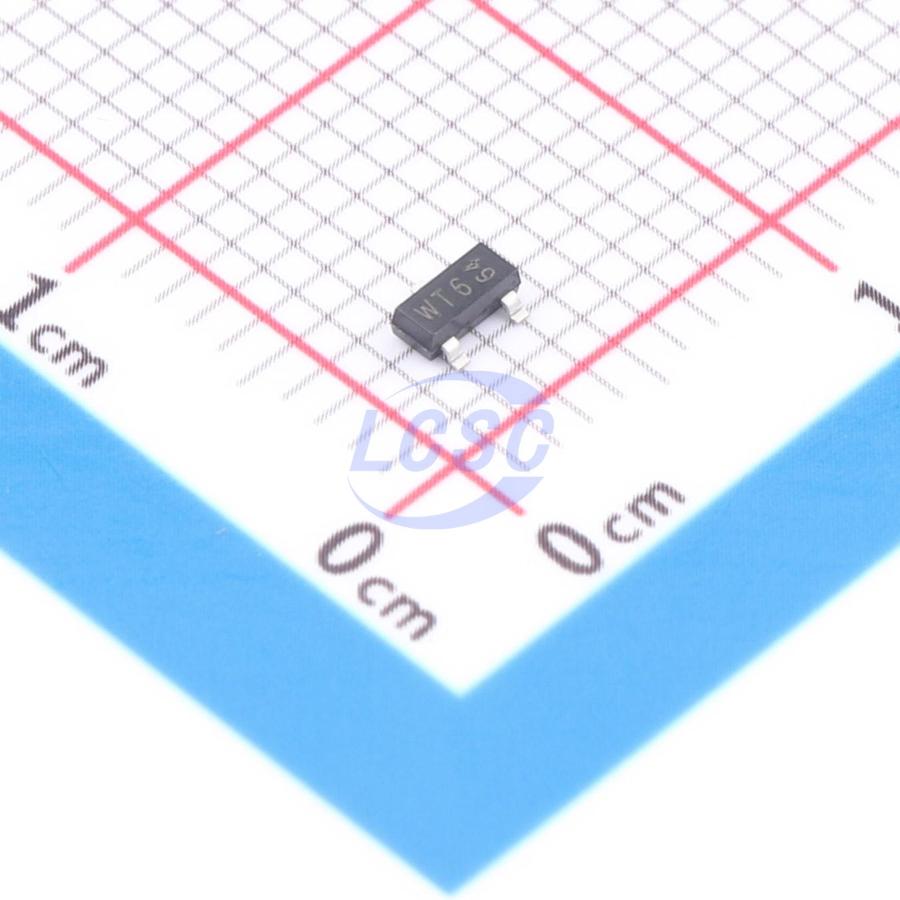

BZX84-C33-QR
1 Independent 31V~35V 33V SOT-23(TO-236AB) Single Zener Diodes RoHS
SOT-23(TO-236AB)ROHS CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84-C33-QR
- Store part #
- C7508275
- Package / case
- SOT-23(TO-236AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C7508275
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.24 | ₹44.80 |
| 200+ | ₹2.18 | ₹436.00 |
| 600+ | ₹2.14 | ₹1,284.00 |
| 2,000+ | ₹2.12 | ₹4,240.00 |
20 × ₹2.24
₹44.80
excl. GST
₹52.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZX84-C33-QR
₹44.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 50nA@23.1V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 31V~35V
- Zener Voltage(Nom)
- 33V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.035 g
Overview
Low- power voltage regulator diodes in a small SOT23 (TO- 236AB) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX84- A), ± 2% (BZX84- B) and approximately ± 5% (BZX84- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 250 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84-C33,215#C131664Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 6,12,300 | ₹2.51 · 6,12,300 in stock | View |
 | SZBZX84C33LT1G#C894473onsemi · SOT-23 | onsemi | SOT-23 | 6,045 | ₹11.18 · 6,045 in stock | View |
 | BZX84C33A#C7528218Jingdao Microelectronics · SOT-23 | Jingdao Microelectronics | SOT-23 | 2,500 | ₹1.96 · 2,500 in stock | View |
 | BZX84C33VLFHT116#C5336615ROHM · SOT-23 | ROHM | SOT-23 | On request | ₹28.34 · 0 in stock | View |
 | LBZX84C33LT1G#C411195LRC · SOT-23 | LRC | SOT-23 | 2,260 | ₹4.87 · 2,260 in stock | View |
