NexperiaDatasheet (PDF)

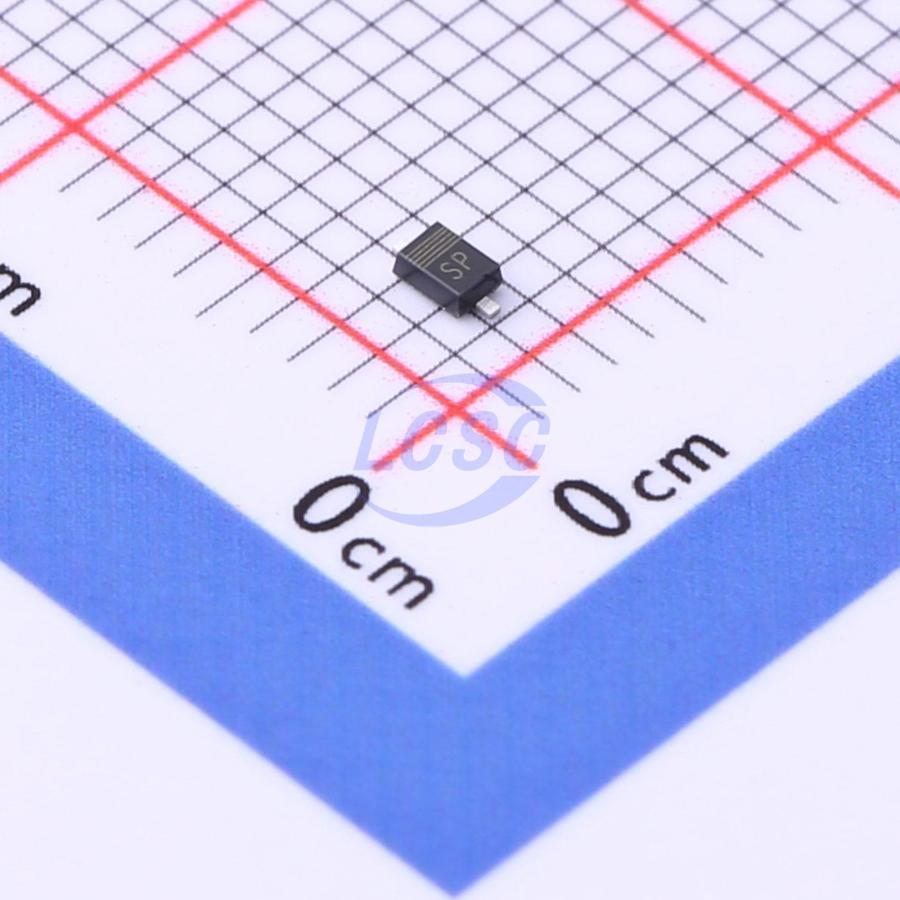

BZX84J-B33,115
Zener Diode 1 Independent 33V 550mW SOD-323F(SC-90)
SOD-323F(SC-90)ROHS3 CompliantActive
DIODE ZENER 33V 550mW SOD-323F(SC-90)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-B33,115
- Store part #
- C550978
- Package / case
- SOD-323F(SC-90)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C550978
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.61 | ₹76.10 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.13 | ₹1,539.00 |
| 3,000+ | ₹4.52 | ₹13,560.00 |
| 6,000+ | ₹4.02 | ₹24,120.00 |
| 9,000+ | ₹3.78 | ₹34,020.00 |
10 × ₹7.61
₹76.10
excl. GST
₹89.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-B33,115
₹76.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 50nA@23.1V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 32.3V~33.7V
- Zener Voltage(Nom)
- 33V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.023 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | D3Z33BF-7#C5244804DIODES · SOD-323F | DIODES | SOD-323F | 14,940 | ₹5.17 · 14,940 in stock | View |
 | BZX84J-C33,115#C551013Nexperia · SOD-323F(SC-90) | Nexperia | SOD-323F(SC-90) | 29,800 | ₹4.87 · 29,800 in stock | View |
 | BZT52B33JS-TP#C914287MCC · SOD-323 | MCC | SOD-323 | 10 | ₹71.57 · 10 in stock | View |
 | MM3Z33VST1G#C463546onsemi · SOD-323 | onsemi | SOD-323 | 30 | ₹8.40 · 30 in stock | View |
 | DDZ33S-7#C5248779DIODES · SOD-323 | DIODES | SOD-323 | 90 | ₹8.75 · 90 in stock | View |
