NexperiaDatasheet (PDF)

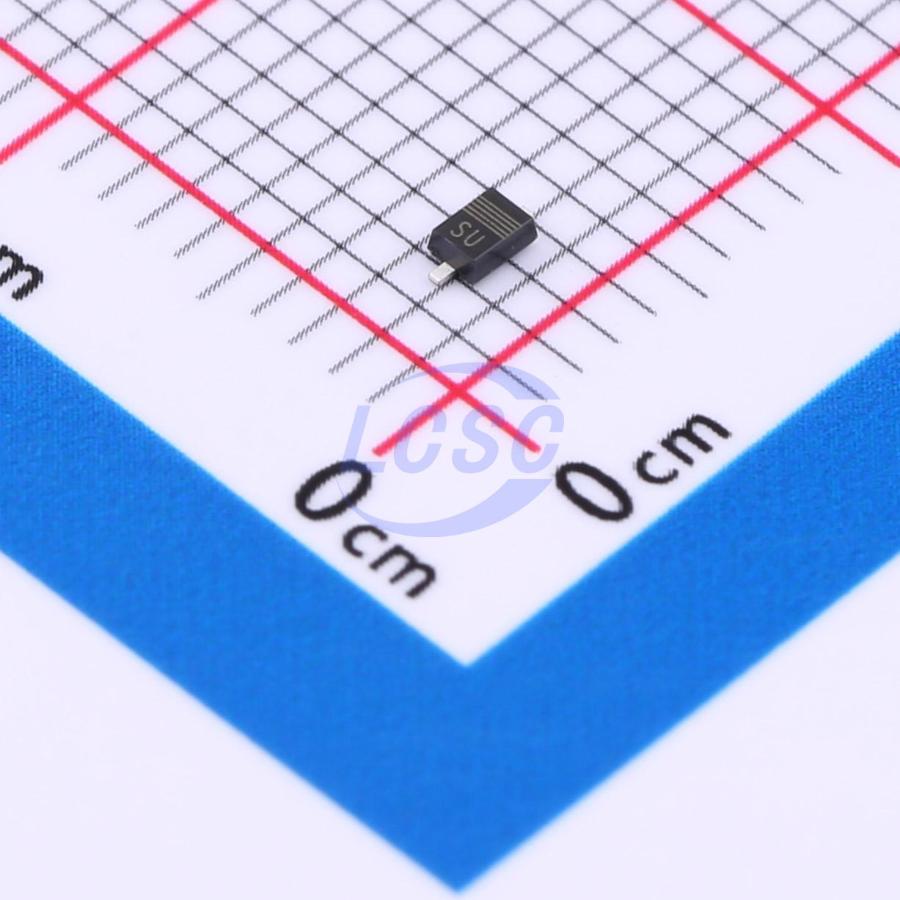

BZX84J-B3V3,115
Zener Diode 1 Independent 3.3V 550mW SOD-323F(SC-90)
SOD-323F(SC-90)ROHS3 CompliantActive
DIODE ZENER 3.3V 550mW SOD-323F(SC-90)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-B3V3,115
- Store part #
- C550982
- Package / case
- SOD-323F(SC-90)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,825 in stock
#C550982
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.91 | ₹84.55 |
| 50+ | ₹13.38 | ₹669.00 |
| 150+ | ₹11.60 | ₹1,740.00 |
| 500+ | ₹10.28 | ₹5,140.00 |
| 3,000+ | ₹8.78 | ₹26,340.00 |
| 6,000+ | ₹8.26 | ₹49,560.00 |
5 × ₹16.91
₹84.55
excl. GST
₹99.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-B3V3,115
₹84.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 3.23V~3.37V
- Zener Voltage(Nom)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B3V3S#C18547701MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 550 | ₹2.33 · 550 in stock | View |
 | BZT52B3V3S#C41433824YFW · SOD-323 | YFW | SOD-323 | 2,180 | ₹2.94 · 2,180 in stock | View |
 | BZT52B3V3S#C52204521YTL · SOD-323 | YTL | SOD-323 | 850 | ₹2.18 · 850 in stock | View |
| BZT52B3V3S#C52711929YONGYUTAI · SOD-323 | YONGYUTAI | SOD-323 | 2,250 | ₹1.97 · 2,250 in stock | View | |
 | BZT52B3V3S#C5342880XCH · SOD-323 | XCH | SOD-323 | 3,150 | ₹2.18 · 3,150 in stock | View |
