NexperiaDatasheet (PDF)

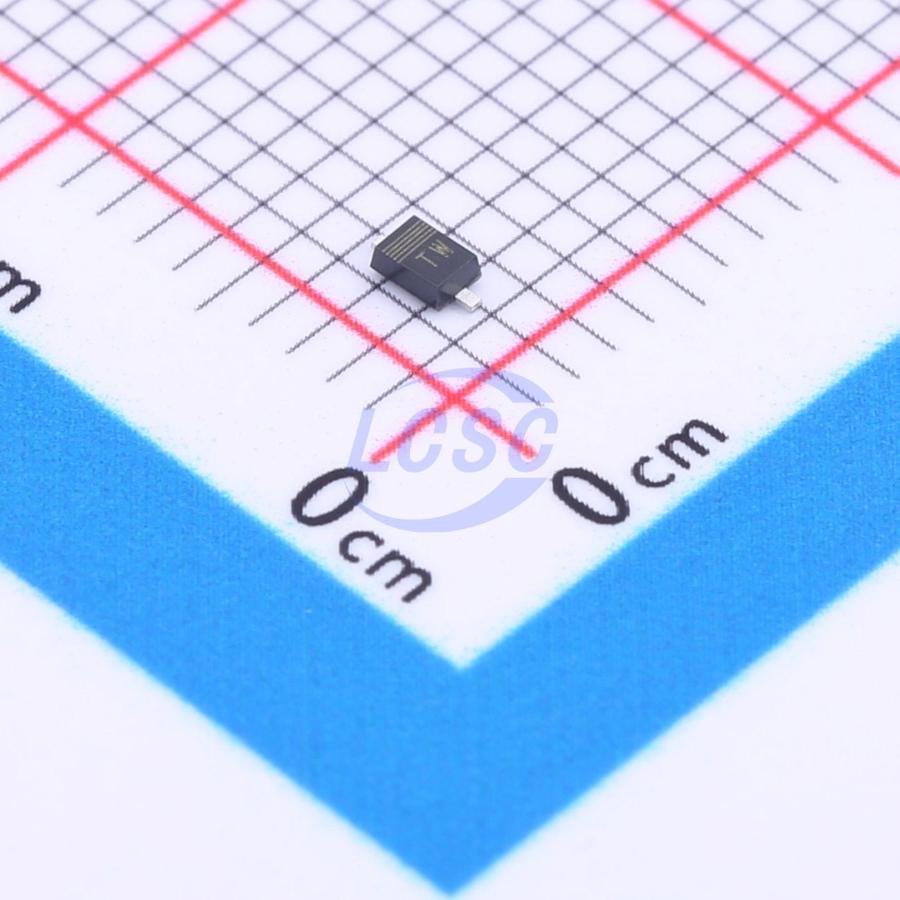

BZX84J-C16,115
Zener Diode 1 Independent 16V 550mW SOD-323F(SC-90)
SOD-323F(SC-90)ROHS3 CompliantActive
DIODE ZENER 16V 550mW SOD-323F(SC-90)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-C16,115
- Store part #
- C551003
- Package / case
- SOD-323F(SC-90)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
870 in stock
#C551003
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.50 | ₹65.00 |
| 100+ | ₹5.16 | ₹516.00 |
| 300+ | ₹4.48 | ₹1,344.00 |
| 3,000+ | ₹3.76 | ₹11,280.00 |
| 6,000+ | ₹3.35 | ₹20,100.00 |
| 9,000+ | ₹3.15 | ₹28,350.00 |
10 × ₹6.50
₹65.00
excl. GST
₹76.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-C16,115
₹65.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 50nA@11.2V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 15.3V~17.1V
- Zener Voltage(Nom)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z16#C123915Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 50 | ₹1.85 · 50 in stock | View |
 | MM3Z16W#C2962421Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 2,150 | ₹1.87 · 2,150 in stock | View |
 | TPZ16VC-323#C42379170TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,700 | ₹2.67 · 2,700 in stock | View |
 | PZU16B,115#C553622Nexperia · SOD-323F | Nexperia | SOD-323F | 3,000 | ₹94.70 · 3,000 in stock | View |
| SZMM3Z16VT1GX#C3732012Nexperia · SOD-323 | Nexperia | SOD-323 | 56,480 | ₹6.63 · 56,480 in stock | View | |
