NexperiaDatasheet (PDF)

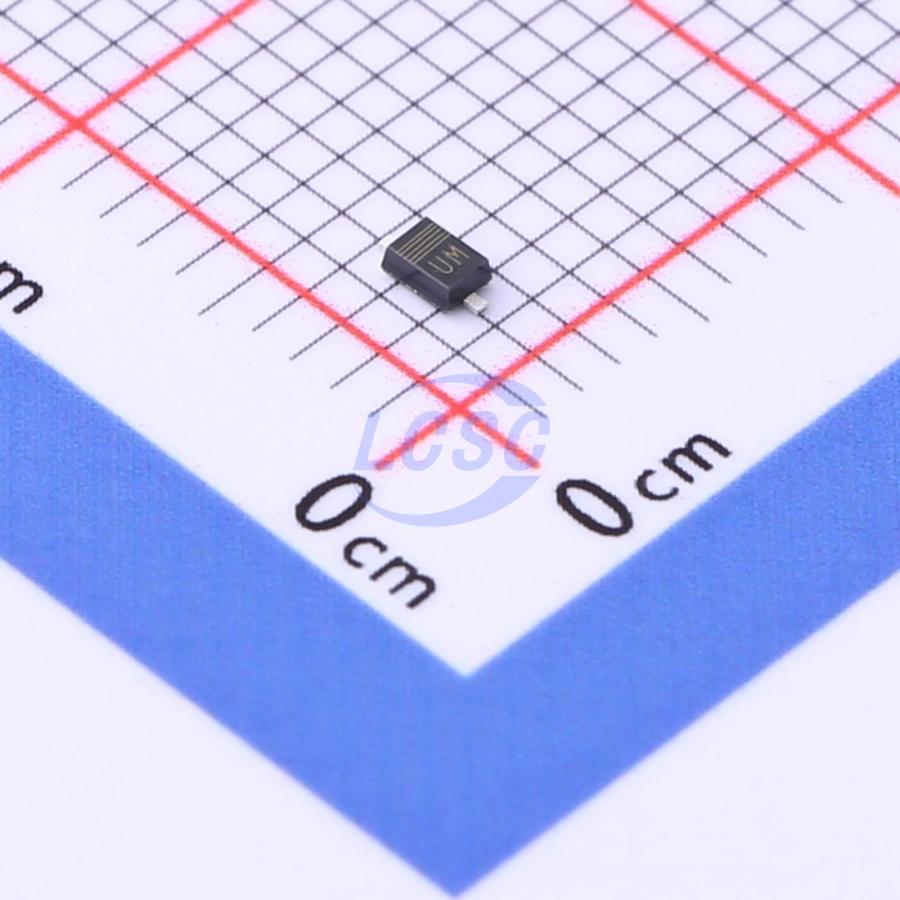

BZX84J-C5V6,115
Zener Diode 1 Independent 5.6V 550mW SOD-323F(SC-90)
SOD-323F(SC-90)ROHS3 CompliantActive
DIODE ZENER 5.6V 550mW SOD-323F(SC-90)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-C5V6,115
- Store part #
- C551027
- Package / case
- SOD-323F(SC-90)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,505 in stock
#C551027
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.13 | ₹70.65 |
| 50+ | ₹11.11 | ₹555.50 |
| 150+ | ₹9.59 | ₹1,438.50 |
| 500+ | ₹8.45 | ₹4,225.00 |
| 3,000+ | ₹7.53 | ₹22,590.00 |
| 6,000+ | ₹7.06 | ₹42,360.00 |
5 × ₹14.13
₹70.65
excl. GST
₹83.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-C5V6,115
₹70.65 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 1uA@2V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 5.2V~6V
- Zener Voltage(Nom)
- 5.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-C5V6,115#C454977Nexperia · SOD-323 | Nexperia | SOD-323 | 1,48,100 | ₹2.39 · 1,48,100 in stock | View |
 | BZT52C5V6SQ#C2857110JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,700 | ₹2.41 · 2,700 in stock | View |
 | BZT52C5V6S#C7427989NH · SOD-323 | NH | SOD-323 | 2,250 | ₹2.06 · 2,250 in stock | View |
 | BZT52C5V6S#C55127499DongChen · SOD-323 | DongChen | SOD-323 | 2,900 | ₹1.57 · 2,900 in stock | View |
 | BZX84J-B5V6,115#C550989Nexperia · SOD-323F | Nexperia | SOD-323F | 1,580 | ₹23.26 · 1,580 in stock | View |
