VISHAYDatasheet (PDF)

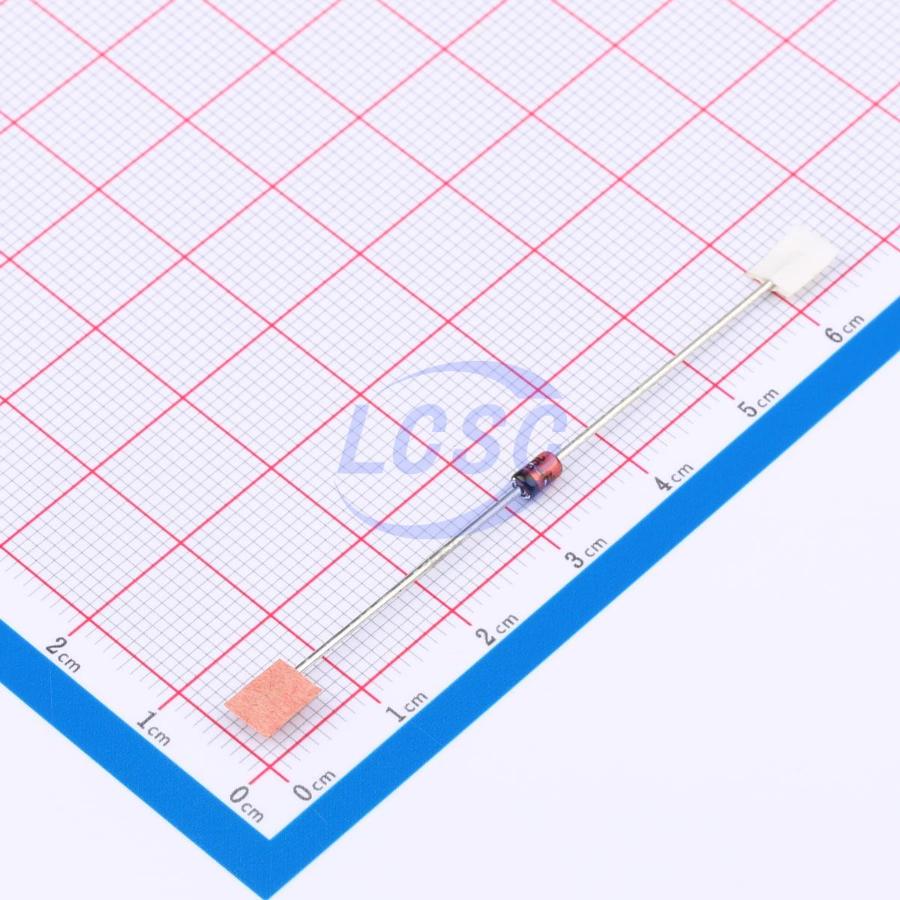

BZX85C24-TR
Zener Diode Independent 24V 1300mW Through Hole DO-204AL(DO-41)
DO-204AL(DO-41)ROHS3 CompliantActive
DIODE ZENER 24V 1300mW DO-204AL(DO-41)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX85C24-TR
- Store part #
- C3009288
- Package / case
- DO-204AL(DO-41)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3009288
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.79 | ₹123.95 |
| 50+ | ₹19.69 | ₹984.50 |
| 150+ | ₹17.50 | ₹2,625.00 |
| 500+ | ₹14.76 | ₹7,380.00 |
| 2,500+ | ₹13.55 | ₹33,875.00 |
| 5,000+ | ₹12.82 | ₹64,100.00 |
5 × ₹24.79
₹123.95
excl. GST
₹146.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BZX85C24-TR
₹123.95 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 1.3W
- Reverse Leakage Current (Ir)
- 500nA
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 22.8V~25.6V
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 25Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.38 g
Overview
Applications
- Stable voltage
Key features
- Silicon planar power Zener diode
- Voltage regulation and clamping circuits for high power ratings
- Zener voltages graded per international E 24 series; ±2% tolerance available by replacing suffix "C" with "B"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX85B24V#C432163LGE · DO-41 | LGE | DO-41 | 650 | ₹9.16 · 650 in stock | View |
 | 1N4749A-TR#C3734509VISHAY · DO-204AL(DO-41) | VISHAY | DO-204AL(DO-41) | 3,960 | ₹12.45 · 3,960 in stock | View |
 | BZV85-C24,113#C550468Nexperia · DO-41 | Nexperia | DO-41 | 60 | ₹8.11 · 60 in stock | View |
 | BZV85-C24,133#C550469Nexperia · DO-41 | Nexperia | DO-41 | 10 | ₹9.10 · 10 in stock | View |
 | 1N4749#C5174493LGE · DO-41 | LGE | DO-41 | 12,050 | ₹6.48 · 12,050 in stock | View |
