VISHAYDatasheet (PDF)

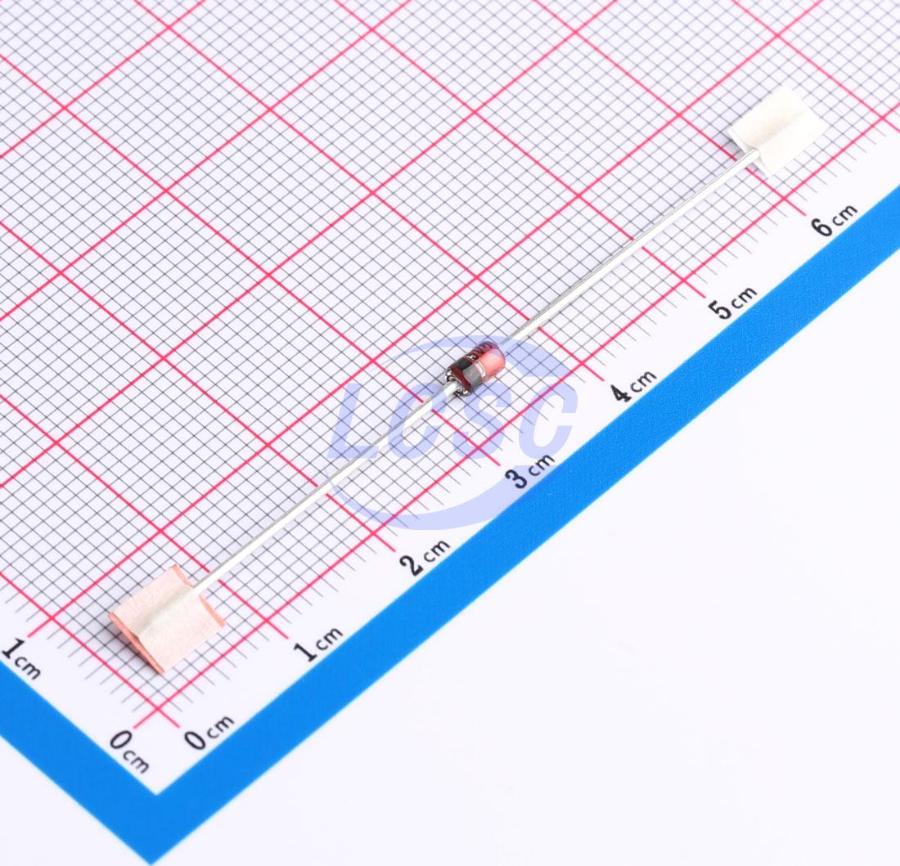

BZX85C5V6-TAP
Zener Diode Independent 5.6V 1300mW Through Hole DO-41 (DO-204AL)
DO-41 (DO-204AL)ROHS3 CompliantActive
DIODE ZENER 5.6V 1300mW DO-41 (DO-204AL)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX85C5V6-TAP
- Store part #
- C3735740
- Package / case
- DO-41 (DO-204AL)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
693 in stock
#C3735740
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.86 | ₹66.86 |
| 10+ | ₹53.14 | ₹531.40 |
| 30+ | ₹47.26 | ₹1,417.80 |
| 100+ | ₹39.86 | ₹3,986.00 |
| 500+ | ₹36.59 | ₹18,295.00 |
| 1,000+ | ₹34.64 | ₹34,640.00 |
1 × ₹66.86
₹66.86
excl. GST
₹78.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per box
BZX85C5V6-TAP
₹66.86 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 1.3W
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 7Ω
- Zener Voltage(Range)
- 5.2V~6V
- Zener Voltage(Nom)
- 5.6V
- Impedance(Zzk)
- 400Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
Applications
- Voltage stabilization
Key features
- Silicon planar power Zener diodes
- For use in stabilizing and clipping circuits with high power rating
- The Zener voltages are graded according to the international E 24 standard; replace suffix "C" with "B" for ±2% tolerance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N4734APF#C22393273ST(Semtech) · DO-41 | ST(Semtech) | DO-41 | 100 | ₹3.93 · 100 in stock | View |
 | 1N4734ATA#C261311Tak Cheong · DO-41 | Tak Cheong | DO-41 | 740 | ₹8.06 · 740 in stock | View |
 | 1N4734A-G_AY_10001#C391329PANJIT · DO-41G | PANJIT | DO-41G | 5,040 | ₹5.48 · 5,040 in stock | View |
 | 1N4734A#C7441080XCH · DO-41 | XCH | DO-41 | 580 | ₹4.84 · 580 in stock | View |
 | 1N4734A#C7466304amsem · DO-41 | amsem | DO-41 | 390 | ₹5.98 · 390 in stock | View |
