NexperiaDatasheet (PDF)

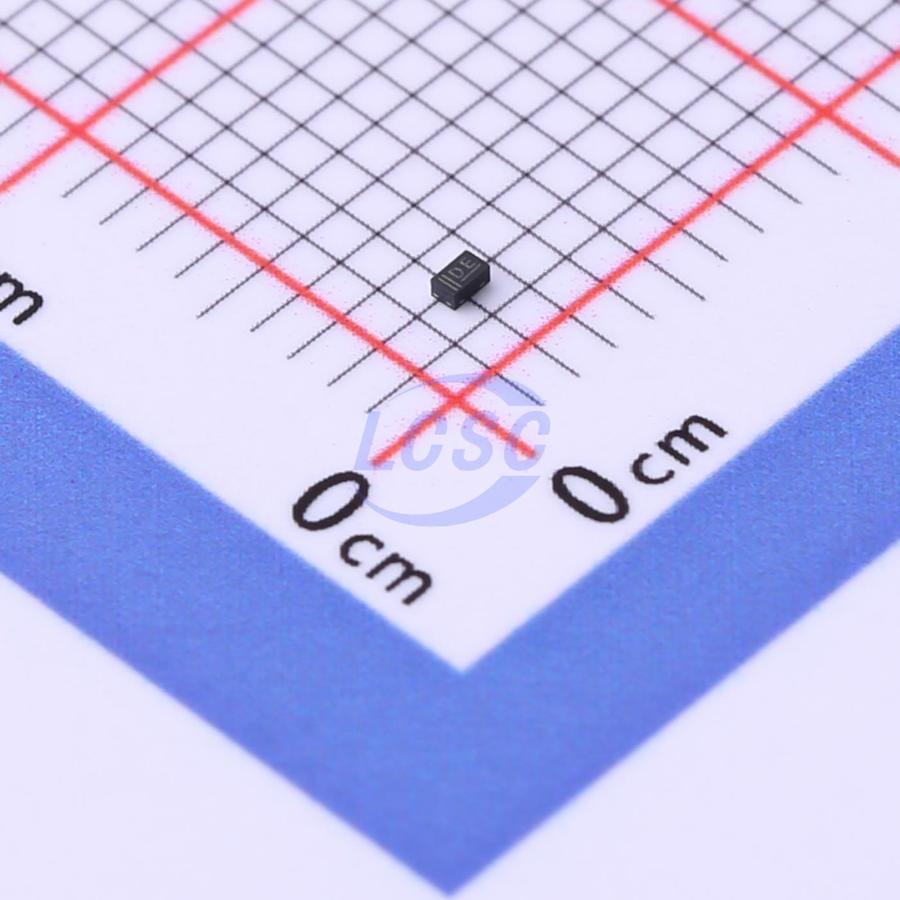

BZX884-C56,315
Zener Diode Independent 56V 250mW Surface Mount SOD-882(DFN1006-2)
SOD-882(DFN1006-2)ROHS3 CompliantActive
DIODE ZENER 56V 250mW SOD-882(DFN1006-2)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX884-C56,315
- Store part #
- C551243
- Package / case
- SOD-882(DFN1006-2)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C551243
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.16 | ₹125.80 |
| 50+ | ₹20.43 | ₹1,021.50 |
| 150+ | ₹18.40 | ₹2,760.00 |
| 500+ | ₹15.86 | ₹7,930.00 |
| 2,500+ | ₹14.74 | ₹36,850.00 |
| 5,000+ | ₹14.06 | ₹70,300.00 |
5 × ₹25.16
₹125.80
excl. GST
₹148.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZX884-C56,315
₹125.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 50nA@39.2V
- Impedance(Zzt)
- 200Ω
- Zener Voltage(Range)
- 53.2V~58.8V
- Zener Voltage(Nom)
- 56V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
General- purpose Zener diodes in an SOD882 (DFN1006- 2) leadless ultra small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
- ElectroStatic Discharge (ESD) ultra high-speed switching
- High-frequency applications
Key features
- Total power dissipation: Ptot ≤ 250 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Leadless ultra small plastic package suitable for surface-mounted design
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX884-B56,315#C551207Nexperia · SOD-882 | Nexperia | SOD-882 | 9,890 | ₹4.19 · 9,890 in stock | View |
| BZX884S-C56YL#C3729515Nexperia · SOD-882 | Nexperia | SOD-882 | On request | ₹10.60 · 0 in stock | View | |
| BZX8850S-C56-QYL#C3732150Nexperia · SOD-882 | Nexperia | SOD-882 | On request | ₹13.31 · 0 in stock | View | |
| BZX8850S-C56YL#C3734880Nexperia · SOD-882 | Nexperia | SOD-882 | On request | ₹12.49 · 0 in stock | View | |
| BZX884S-C56-QYL#C3730264Nexperia · SOD-882 | Nexperia | SOD-882 | On request | ₹10.95 · 0 in stock | View | |
