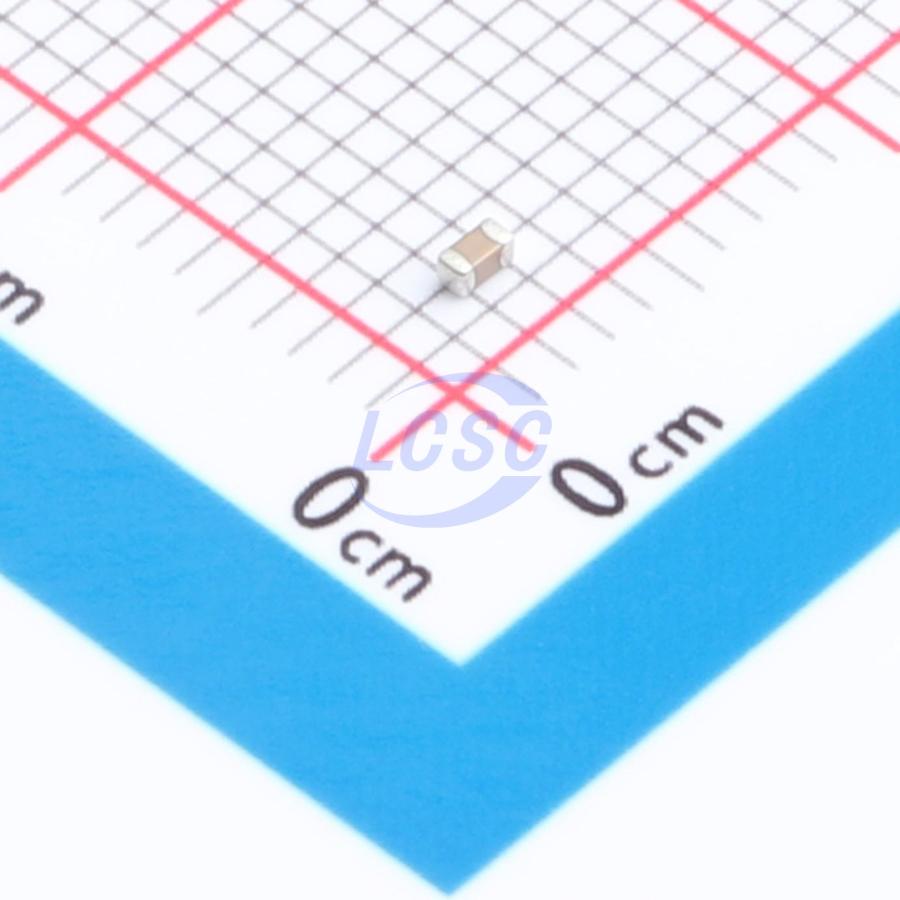

C0603C102K1RECAUTO

KEMET ESD-rated commercial and automotive-grade X7R dielectric surface mount capacitors are designed for applications where ESD events during assembly or operation may damage capacitors or circuits. These ESD-rated capacitors are designed to withstand ESD levels per the Human Body Model (HBM) AEC Q200-002 standard. KEMET automotive-grade capacitors also meet the stringent AEC-Q200 qualification requirements of the Automotive Electronics Council. The X7R dielectric has a maximum operating temperature of 125°C and is considered "temperature stable." The EIA classifies X7R dielectric as a Class II material. These components are fixed ceramic dielectric capacitors suitable for bypass and decoupling applications as well as frequency discriminator circuits where Q and stability of capacitance characteristics are not critical. The capacitance of X7R dielectric is predictable over time and voltage, with minimal change compared to the value at 25°C. Capacitance change is limited to ±15% over the temperature range of -55°C to +125°C.

Applications

• Typical applications include: ESD protection, IC protection, RF filtering, and automotive I/O applications such as controllers, navigation systems, airbags, and keyless entry systems.

Key features

• AEC-Q200 automotive certified
• ESD certified per HBM AEC Q200-002
• Available in EIA 0402, 0603, 0805, 1206 case sizes
• DC voltage ratings: 16V, 25V, 50V, 63V, 100V, 200V, and 250V
• Capacitance range: 1nF to 2.2μF
• Operating temperature range: -55°C to +125°C
• Lead-free, RoHS and REACH compliant
• Capacitance tolerances: ±5%, ±10%, and ±20%
• 100% pure matte tin termination for excellent solderability
• Non-polarized device, reducing mounting concerns
• Flexible termination option available
