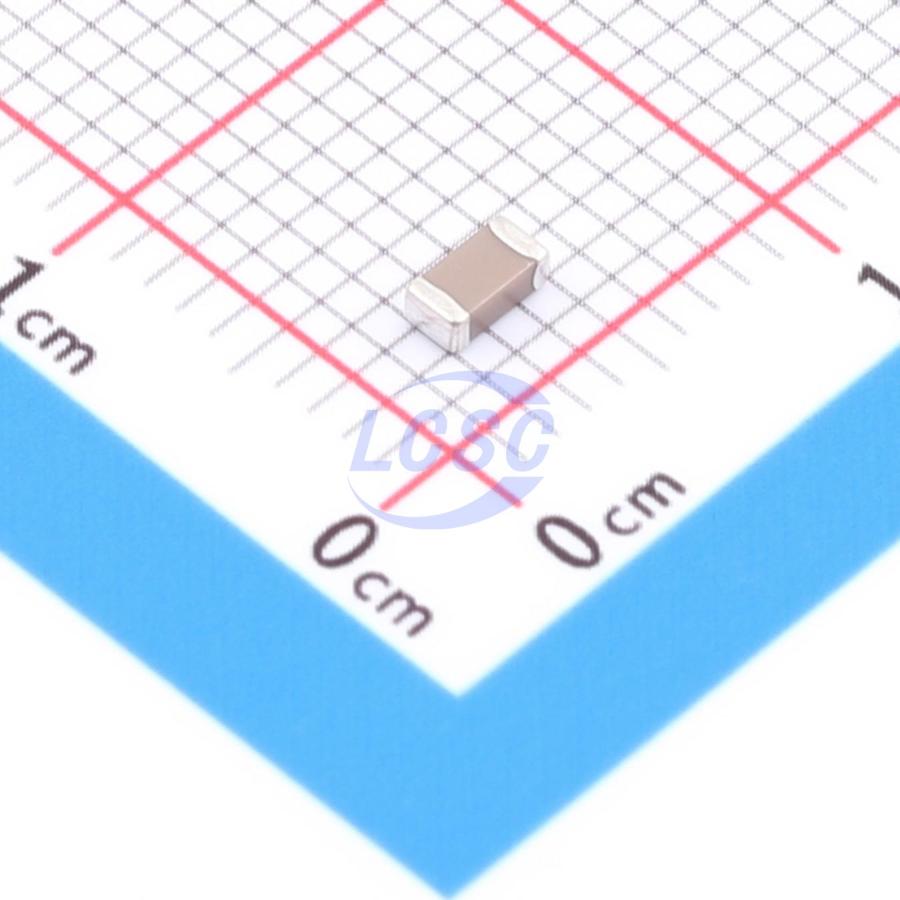

C1206C222JDGACAUTO

KEMET's automotive-grade high-voltage surface mount MLCCs utilize C0G dielectric with temperature-compensating characteristics, ideal for resonant circuit applications or applications requiring stable Q factor and capacitance. C0G capacitors exhibit no capacitance change over time or voltage, with negligible capacitance variation relative to ambient temperature. From -55°C to +125°C, capacitance change is limited to ±30 ppm/°C. Their superior high-frequency performance makes C0G high-voltage dielectrics the preferred choice for design engineers worldwide. Whether under the hood or in the cabin, these capacitors are designed to deliver reliable performance in mission-critical and safety-related automotive circuits. Given potentially harsh environmental conditions, automotive-grade products are subject to more stringent test protocols and inspection standards. KEMET's automotive-grade series capacitors meet AEC-Q200 certification requirements from the Automotive Electronics Council.

Applications

• High-frequency power converters
• Wide bandgap (WBG), SiC, and GaN systems
• Snubbers (high dV/dT)
• Resonant circuits (LLC, wireless charging, etc.)
• Timing
• Filtering

Key features

• AEC-Q200 automotive qualified
• Operating temperature range: -55°C to +125°C
• Capacitance range: 1 pF to 0.15 μF
• DC voltage ratings: 500 V, 630 V, 1 KV, 1.5 KV, 2 KV, 2.5 KV, and 3 KV
• Available in EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, 2824, 3040, 3640, and 4540 case sizes
• Ultra-low ESR and ESL
• High ripple current capability
• No capacitance shift with voltage variation
• Negligible capacitance shift with temperature variation
• No piezoelectric noise
• Pb-free, RoHS and REACH compliant
