WALSONDatasheet (PDF)
C42Q347448P60001

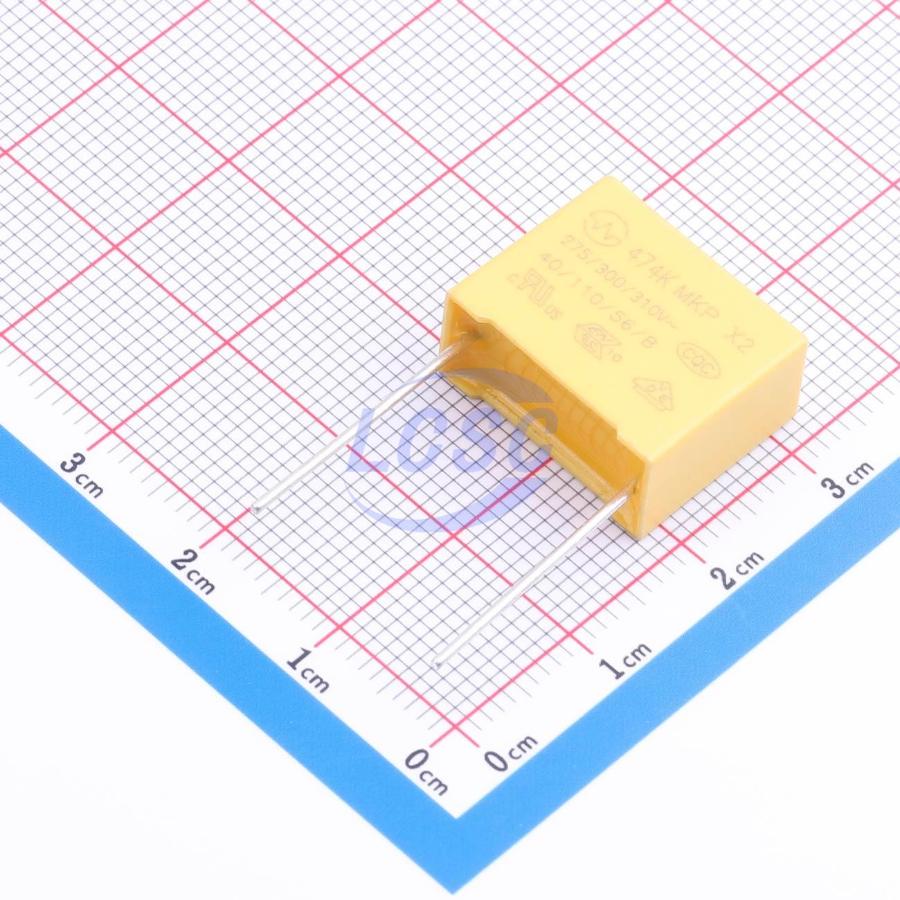

470nF ±10% X2 Through Hole,P=15mm Ceramic Capacitors
Through Hole,P=15mmRoHSActive
- Manufacturer
- WALSON
- Manufacturer part #
- C42Q347448P60001
- Store part #
- C53670924
- Package / case
- Through Hole,P=15mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C53670924
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.92 | ₹69.60 |
| 50+ | ₹11.29 | ₹564.50 |
| 150+ | ₹9.98 | ₹1,497.00 |
| 500+ | ₹8.98 | ₹4,490.00 |
| 2,500+ | ₹8.20 | ₹20,500.00 |
| 5,000+ | ₹7.81 | ₹39,050.00 |
5 × ₹13.92
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per bag
C42Q347448P60001
₹69.60 for 5 + GST
Specifications
- Capacitance
- 470nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 275V;310V
- safety certification
- UL;VDE;CQC;ENEC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.656 g
Overview
This product is wound from metallized high-temperature polypropylene film, with lead-free metal sprayed on the end faces and leads soldered, encapsulated externally in a flame-retardant plastic case and flame-retardant epoxy resin.
Applications
- For anti-interference applications such as power line crossing
Key features
- Metallized polypropylene film dielectric
- Withstands overvoltage surges
- Excellent flame retardancy
