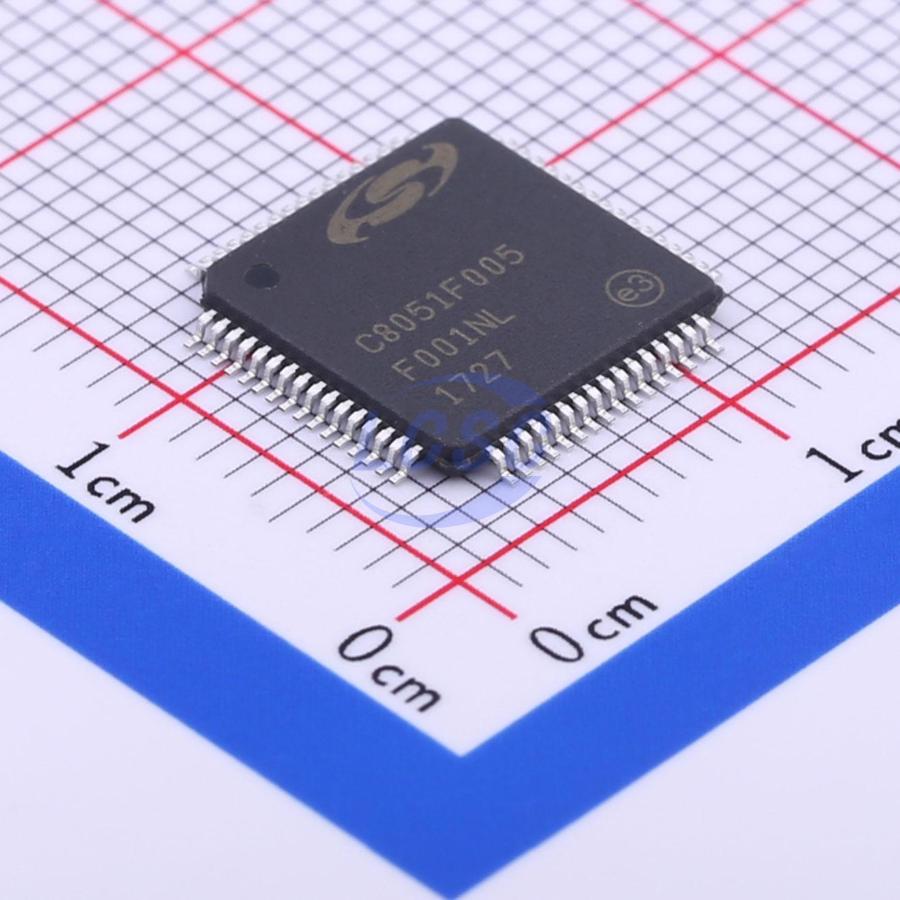

C8051F005-GQR

Key features

• ±1 LSB INL; no missing codes
• Programmable throughput up to 100 ksps
• 8 external inputs; programmable as single-ended or differential
• Programmable amplifier gain: 16, 8, 4, 2, 1, 0.5
• Data-dependent windowed interrupt generator
• Built-in temperature sensor (±3 °C)
• Pipelined instruction architecture; executes 70% of system clocks
• Up to 25 MIPS throughput with 25 MHz clock
• Expanded interrupt handler; up to 21 interrupt sources
• 2304 bytes data RAM
• 32 kB Flash; in-system programmable in 512-byte sectors (512 bytes are reserved)
• 32 port I/O; all are 5 V tolerant
• Hardware SMBus (I²C compatible), SPI, and UART serial ports available concurrently
• Programmable 16-bit counter/timer array with five capture/compare modules
• 4 general-purpose 16-bit counter/timers
• Dedicated watchdog timer; bidirectional reset
• On-chip emulation circuitry facilitates full-speed, non-intrusive, in-circuit emulation
• Supports breakpoints, single stepping, watchpoints, inspect/modify memory, and registers
• Superior performance to emulation systems using ICE-chips, target pods, and sockets
• Fully compliant with IEEE 1149.1 specification
• Internal programmable oscillator: 2–16 MHz
• External oscillator: Crystal, RC, C, or Clock
• Can switch between clock sources on-the-fly
• Supply Voltage: 2.7 to 3.6 V
• Typical operating current: 12.5 mA at 25 MHz
• Multiple power saving sleep and shutdown modes
• Temperature Range: –40 to +85 °C
